Advance Paris - X-A160EVO Stereo Amplifier
Advance Paris - X-A160EVO Stereo Amplifier
Couldn't load pickup availability
Description
New diagrams, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation such is the X-A160EVO.

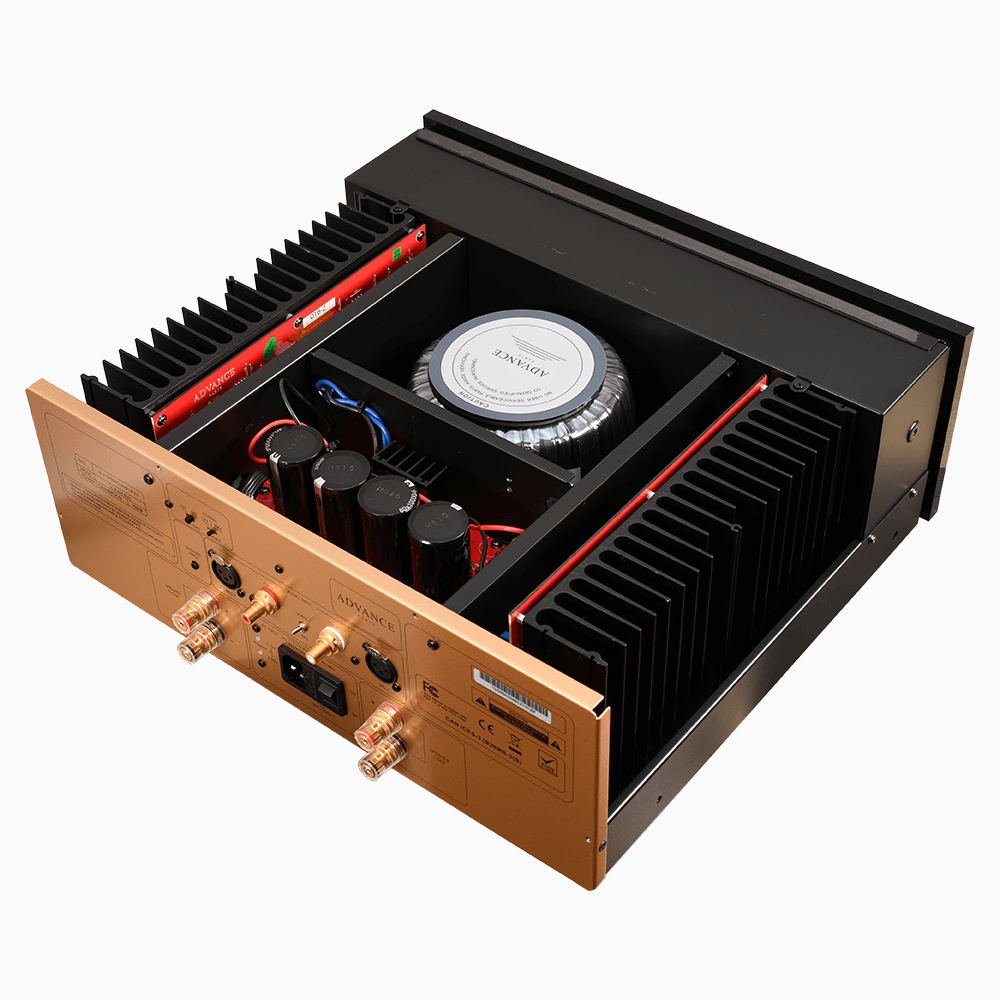

The X-A160EVO amplifier consists of an ultra-rigid, compartmentalized chassis, providing effective shielding, thus eliminating any risk of radiation between the various circuits of the device.
The use of “Audiophile” type components guarantees a reproduction of your favorite music with finesse and subtlety.
The high power supply associated with the "very high current" power transistors (NJW0281G – NJW0302G) of the MAA 1000, restores the most demanding dynamics.
The X-A160EVO delivers a power of 160 Watts per channel in class AB*, a switch located at the back of the device allows the X-A160EVO to deliver the first Watts in class A*. Beyond this power, switching to class AB** takes place automatically when Hi-Bias is selected.
Specifications
|
Output power 8Ω |
2 x 160W RMS |
|
Output power 4Ω |
2 x 240W RMS |
|
Bandwidth |
10 Hz – 80 kHz |
|
Distortion |
<0,07% |
|
Signal to noise ratio |
> 120 dB |
|
Channel separation |
> 80 dB |
|
Imped. Asymmetric input |
20 KΩ |
|
Imped. input Symmetrical |
38 KΩ |
|
Mains voltage |
115-230V |
|
Standby consumption |
<0,5W |
|
consumption max. |
500w |
|
Transformer power |
700w |
|
Transformer |
Toroidal |
|
Height |
6.3 in. |
|
Width |
17.32 in. |
|
Depth |
16.93 in. |
|
Net weight |
41.89 lbs. |
|
Product Type |
power block |
|
VU-Meter |
Yes |
