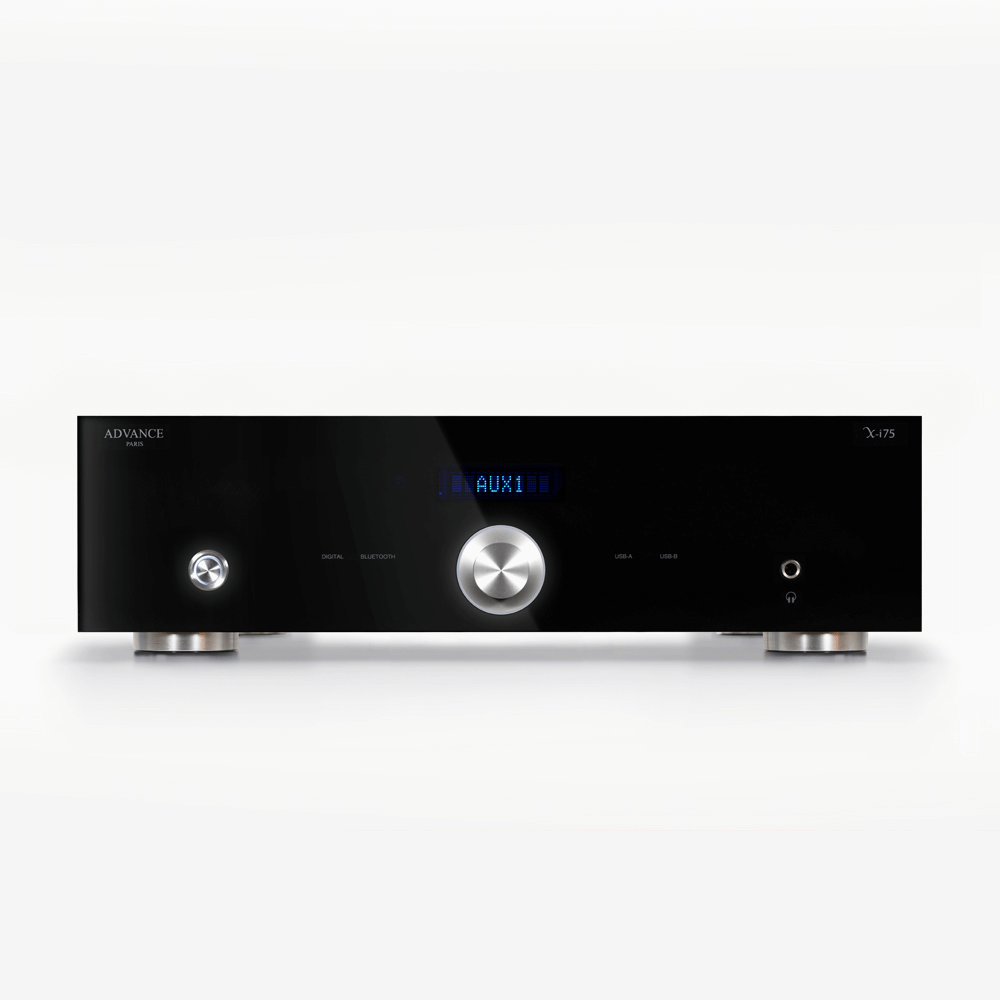

Advance Paris - X-i75 Integrated Amplifier
Advance Paris - X-i75 Integrated Amplifier
Couldn't load pickup availability
Description
A Classic High Performance Class A/B Stereo Integrated Amplifier with digital inputs and Hi-Res DAC
A versatile performer with both analog and digital inputs, benefiting from the latest technical innovations. With onboard toroidal transformer and high current design, a dynamic and smooth power plant that can produce fine details in its playback.
The "Hi Bias" operating mode enables Class A operation on the first few watts.
The included system remote can command an entire Advance Paris system.
Specifications
|
Output power 8Ω |
2 x 75W RMS |
|
Output power 4Ω |
2 x 110W RMS |
|
Bandwidth |
(-3dB) 10Hz-35kHz |
|
Tone |
+/- 10 dB |
|
Distortion |
<0.1% |
|
Signal to noise ratio |
> 90 dB |
|
Channel separation |
> 70 dB |
|
Impedance d'entrée |
47KΩ |
|
Phono input impedance |
47KΩ |
|
Lvl. amplifier input |
< 300mV |
|
Phono MM/MC input level |
2,5mV |
|
Mains voltage |
115-230V |
|
consumption max. |
300w |
|
Transformer |
1 |
|
Height |
4.72 in. |
|
Width |
16.93 in. |
|
Depth |
12.6 in. |
|
Net weight |
18.96 lbs. |
|

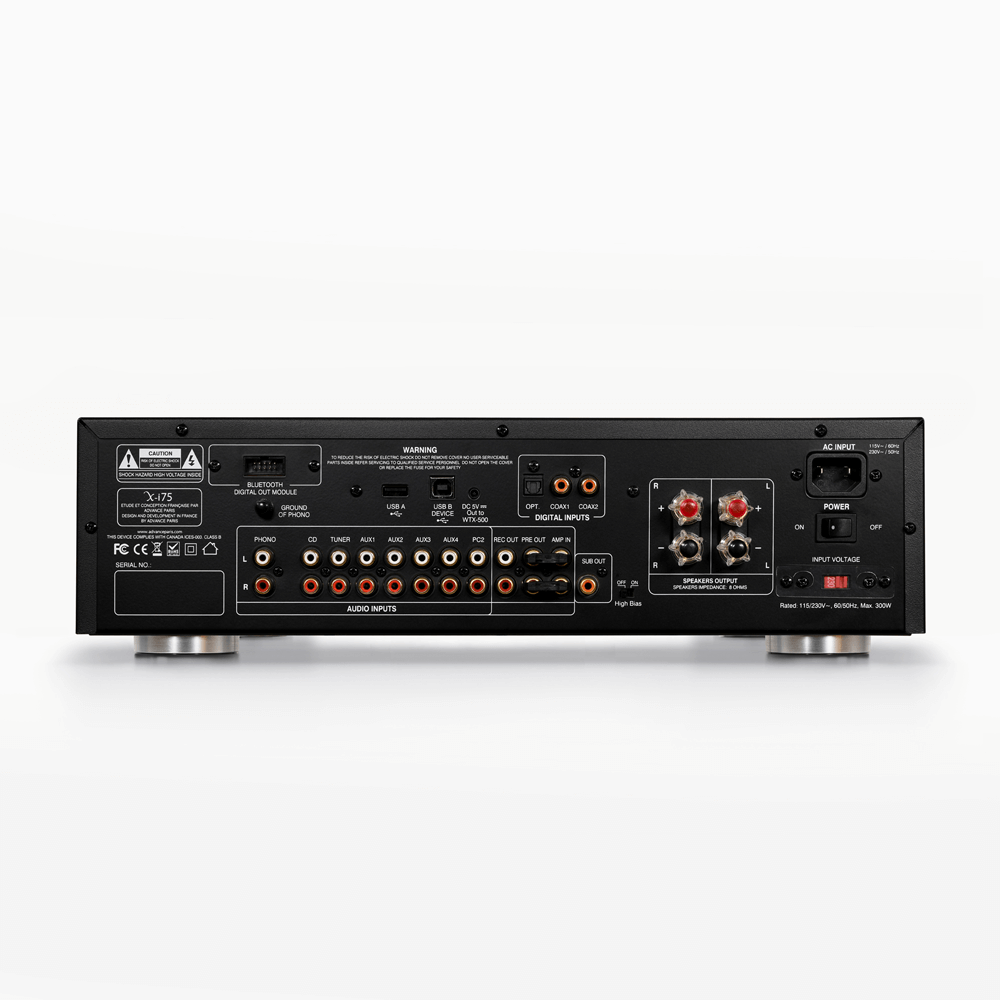

CD input |
1 |
|
Tuner input |
1 |
|
Auxiliary Input |
4 |
|
RCA Analog Input |
1 |
|
Record output |
1 |
|
Output for Subwoofer |
1 |
|
Amp-Preamp |
Preamp Output |
|
Optical input |
1 |
|
USB-A input |
1 |
|
USB-B input |
1 |
|
Output Pair of speakers |
1 |
|
5 Volt Output WTX 500 |
1 |
|
Settings |
Treble, Balance, Bypass, Hi Bias Switch, Bass, Volume |
