Description
Our new X-A220EVO monophonic power amplifier delivers 220W of power (at 8 ohms).
A pair of X-A220 Evo combined with our X-P700 pre-amplifier forms an highly musical Hi-Fi system at an exceptional value.
Engineering expertise in the design of our circuits allows us to achieve high level performance at a competitive price.

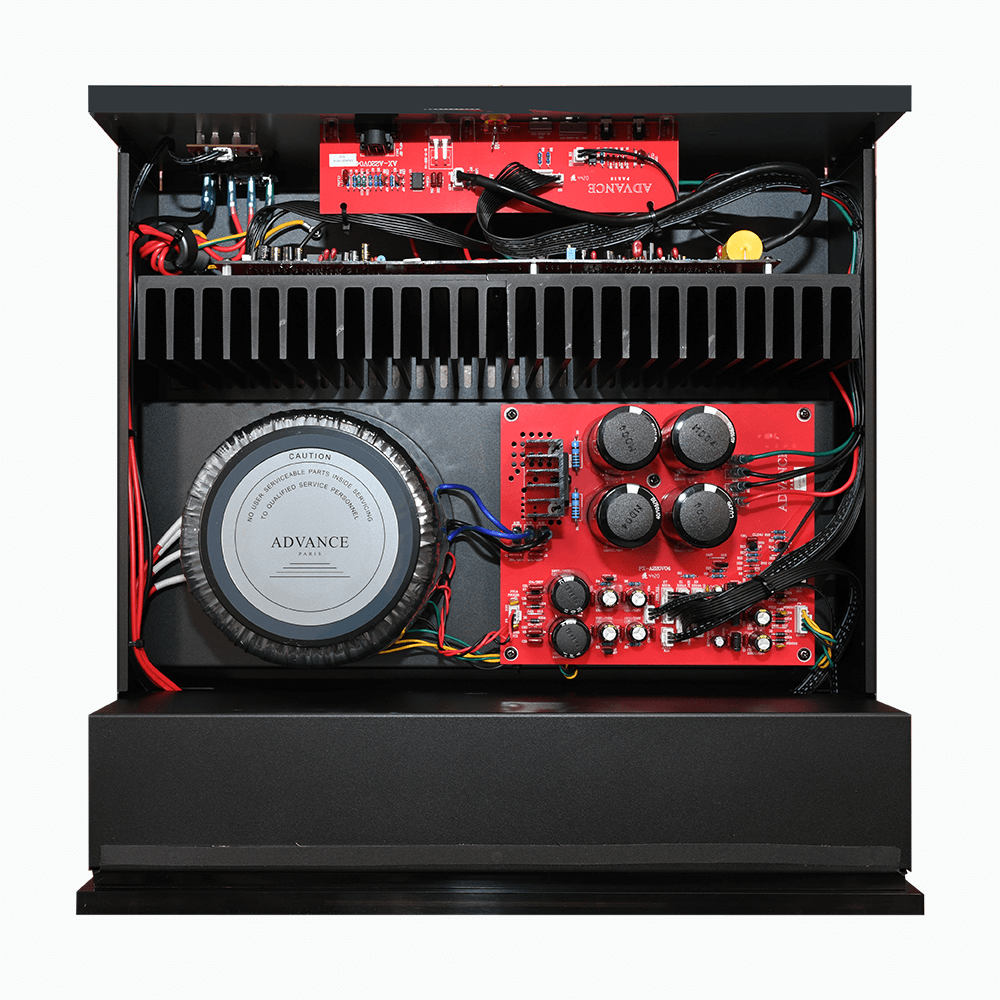

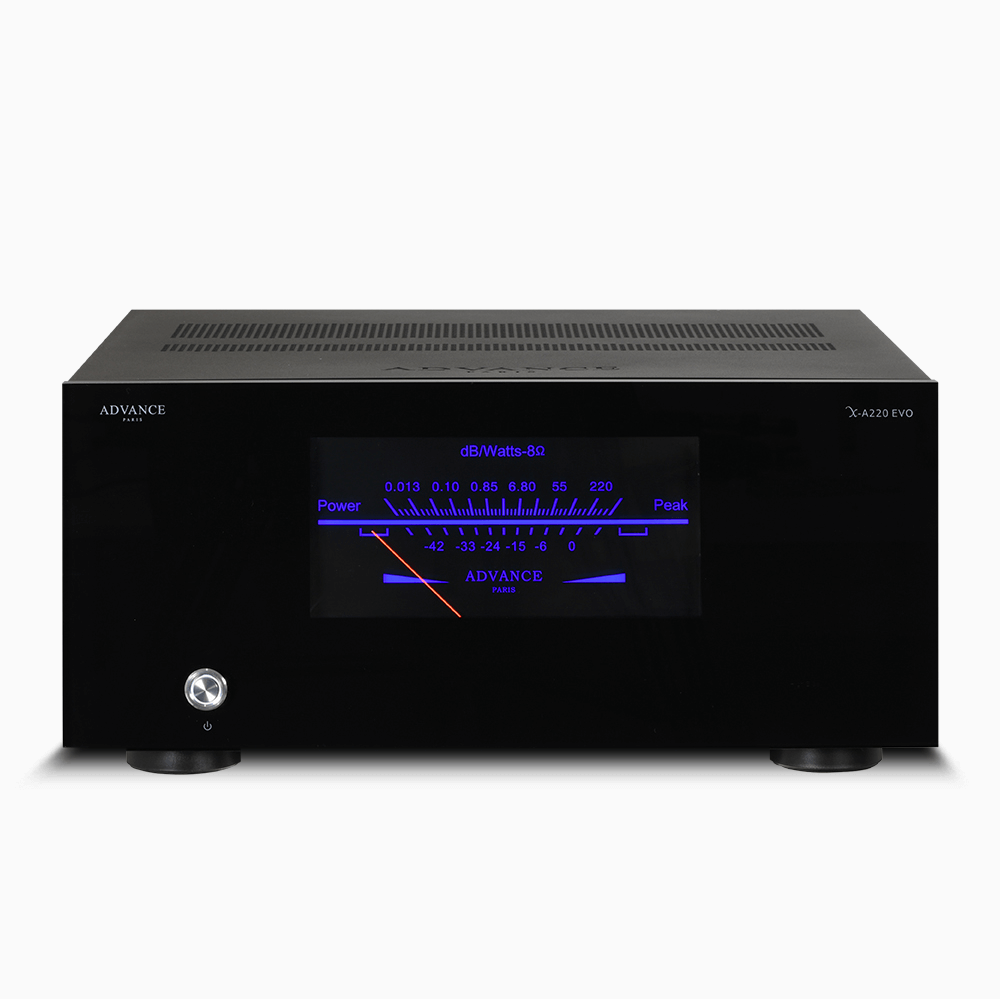

Construction: The steel frames provide a stable foundation. The addition of a methacrylate front panel results in a beautiful looking design showcasing the prominent Vu Meter. The interior layout is strategic and compartmentalized. This judicious arrangement of the various sub-assemblies and
choice of quality components, soldered on separate PCBs and partitioned by function provide the basis for excellent sound quality.
The X-A220EVO's substantial height follows the requirement of the generously sized power transistor heatsink.

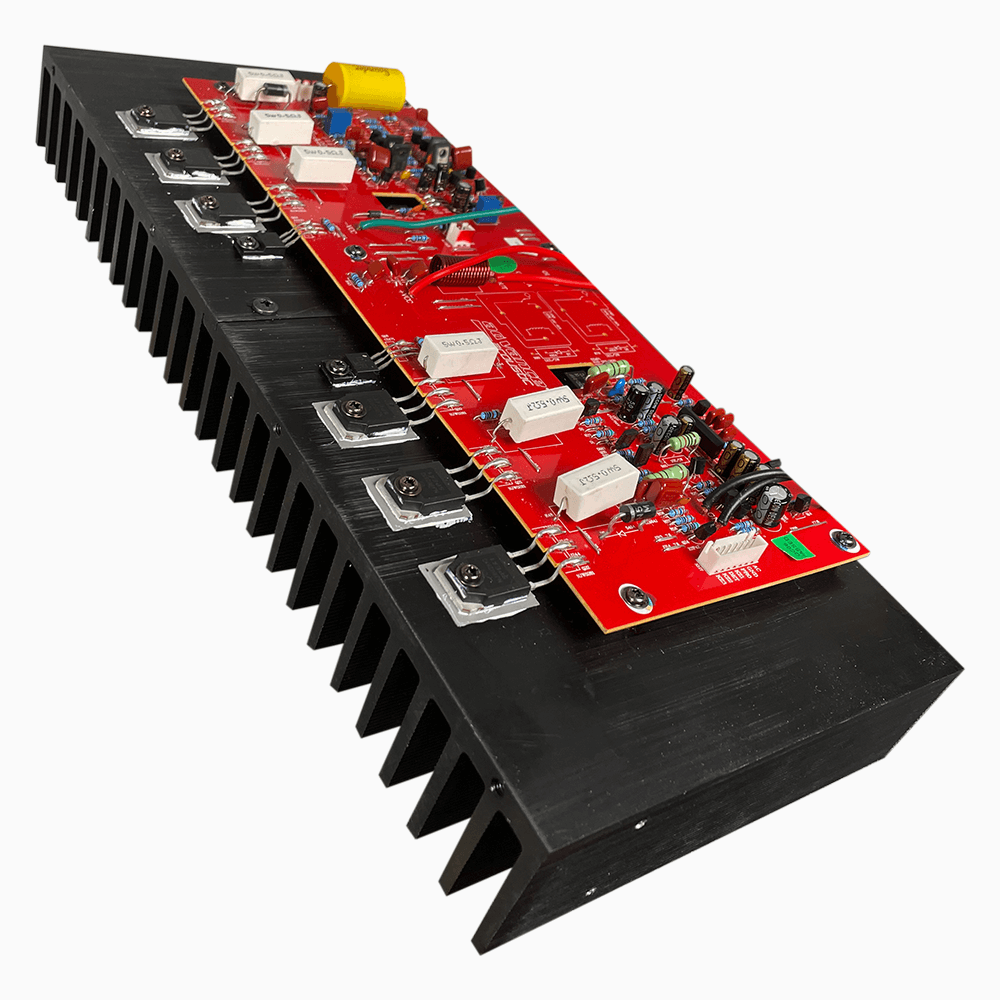

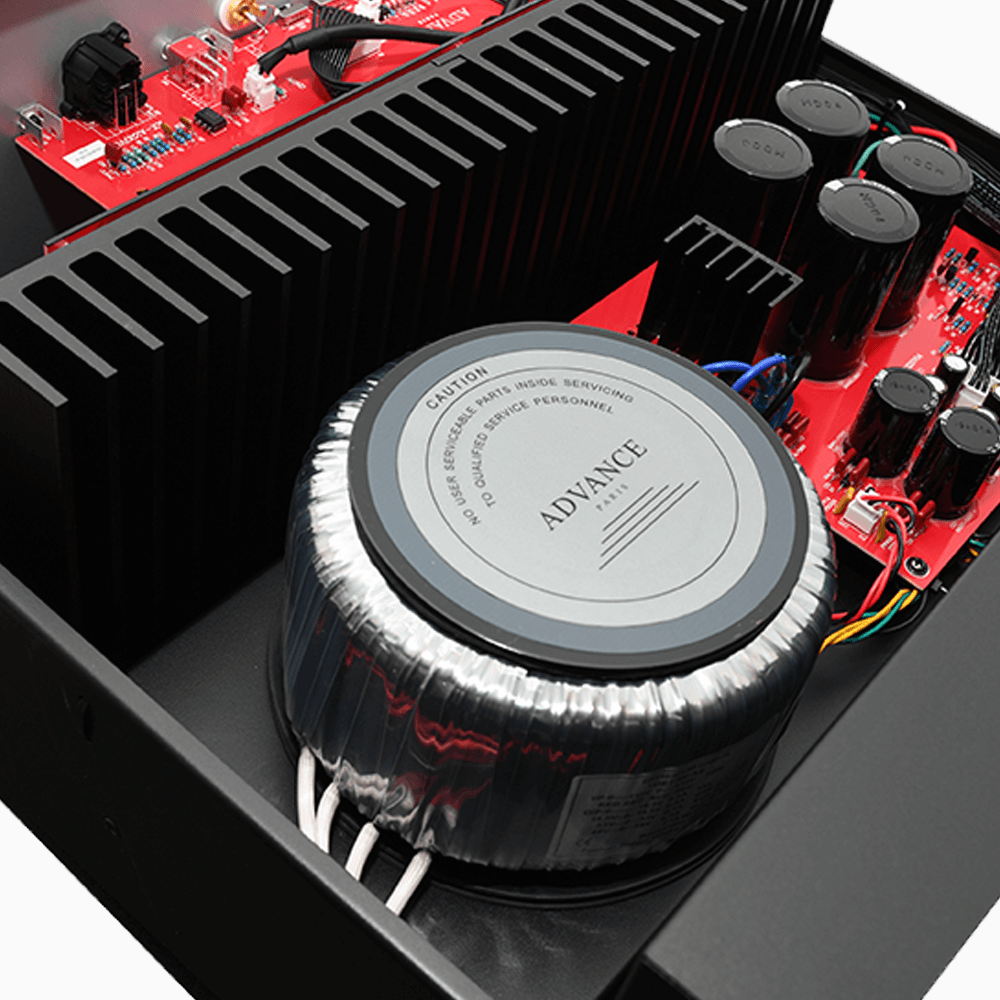

The X-A220EVO has a 700 VA toroidal transformer. After rectification, four 10 µF / 000 V capacitors smooth the direct current. The power stages call for a triple push-pull of complementary NJW80G / NJW0281G transistors, delivering up to 220W (8 ohms) in class AB.
The amplifier can operate in two modes accessible via a switch: when the High Bias function is engaged, the X-A220EVO operates in “class A” on the first Watt then automatically slides to class AB.
Please allow for a 2 week delivery time on this product.
Specifications
Output power 8Ω |
1 x 220W RMS |
Output power 4Ω |
1 x 350W RMS |
Bandwidth |
10 Hz – 80 kHz |
Distortion |
<0,08% |
Signal to noise ratio |
> 100 dB |
Channel separation |
> 80 dB |
Imped. Asymmetric input |
32 KΩ |
Imped. input Symmetrical |
38 KΩ |
Mains voltage |
115-230V |
Standby consumption |
<0,5W |
consumption max. |
500w |
Transformer power |
700w |
Transformer |
Toroidal |
Height |
7.87 in. |
Width |
16.93 in. |
Depth |
17.72 in. |
Net weight |
46.30 lbs. |
Product Type |
power block |
VU-Meter |
Yes |
