DAC-Z10

Precision Engineering

Built for Authentic Sound

From digital to analog, the DAC-Z10 lets music unfold in its purest form. A DAC that reveals the authentic character and finest details of sound.

Full Isolation Design

Eversolo FIA™

The DAC-Z10 is built on Eversolo's Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment.

Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analog preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

Fully Balanced Preamplifier

The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Eversolo Precision Core™

Accurate Clock System

OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology

The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.

External Clock Support:

• 10MHz & 25MHz high-precision clock support
• Input Impedance: 50Ω / 75Ω
• FPGA Clock Reconstruction

FPGA Redefined

The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.

Ultra-Low Distortion & Wide Dynamic Range

Capturing Every Nuance of the Music

The DAC-Z10 lets every listener hear the true sound. With ultra-low distortion and wide dynamic range, every note is crystal clear.

Comprehensive Connectivity

6.35mm Headphone Amplifier Module

The DAC-Z10 has a dedicated 6.35mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.

High Gain Output: 1W (16Ω) | 1W (32Ω) | 0.16W (300Ω)

Aviation-Grade Aluminum Chassis

The Balance of Simplicity and Strength

The DAC-Z10's chassis is crafted from aviation-grade aluminum. Rigid yet lightweight, it blends precision engineering with refined texture. Sleek in design, yet full of presence.

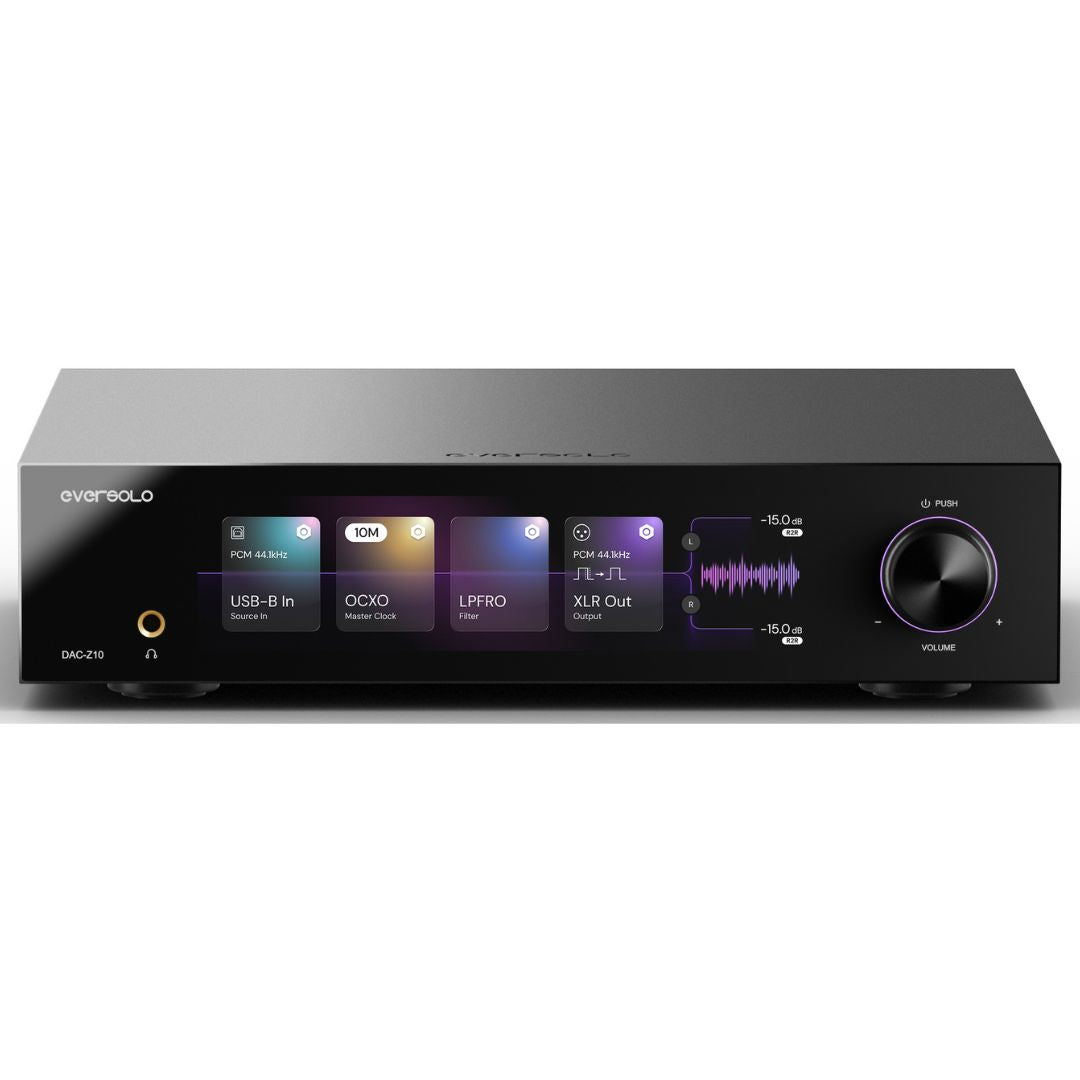

8.8-Inch IPS Touchscreen

The DAC-Z10 features an 8.8-inch IPS touchscreen with a clear and intuitive interface. Switching inputs, adjusting volume, and checking format information are all at your fingertips.

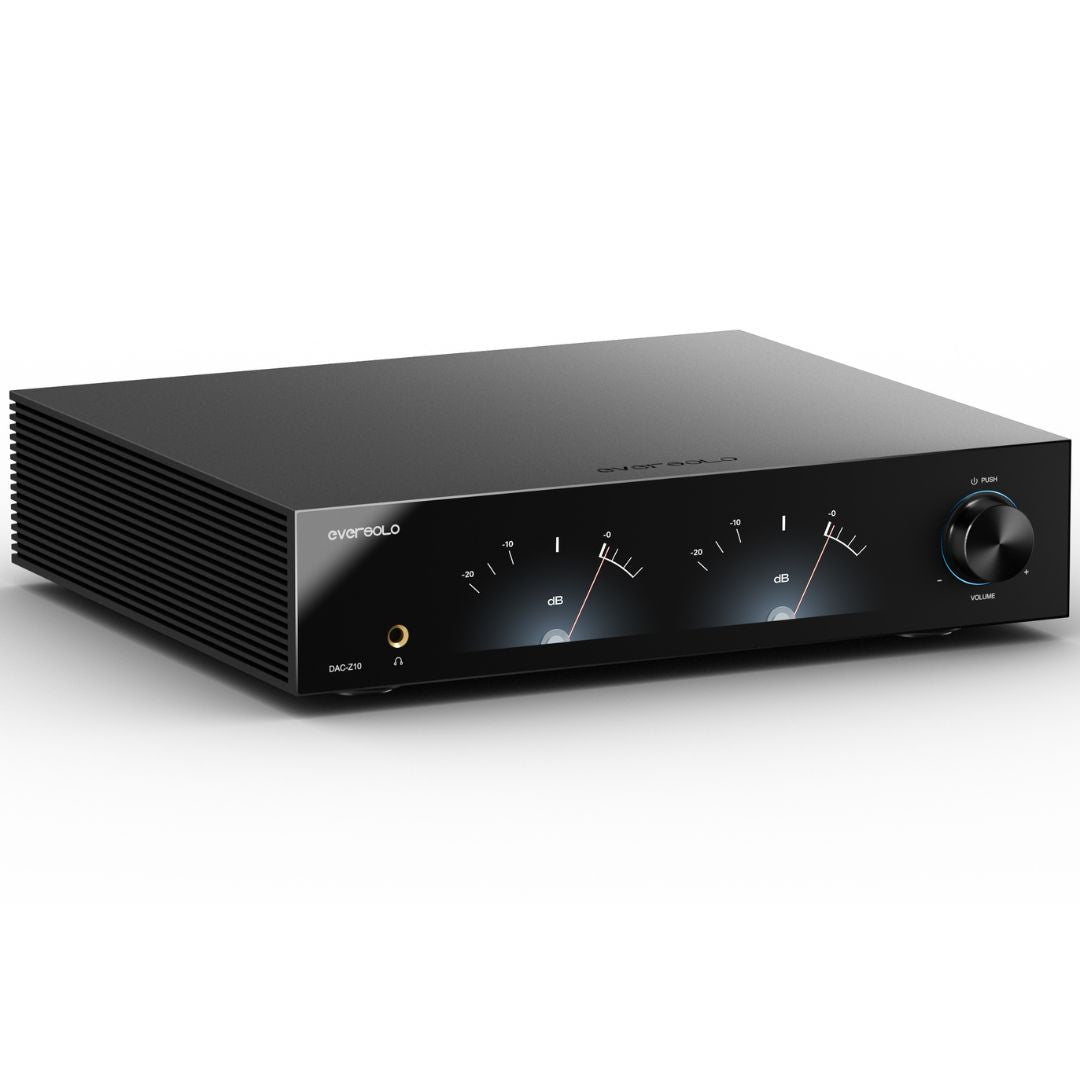

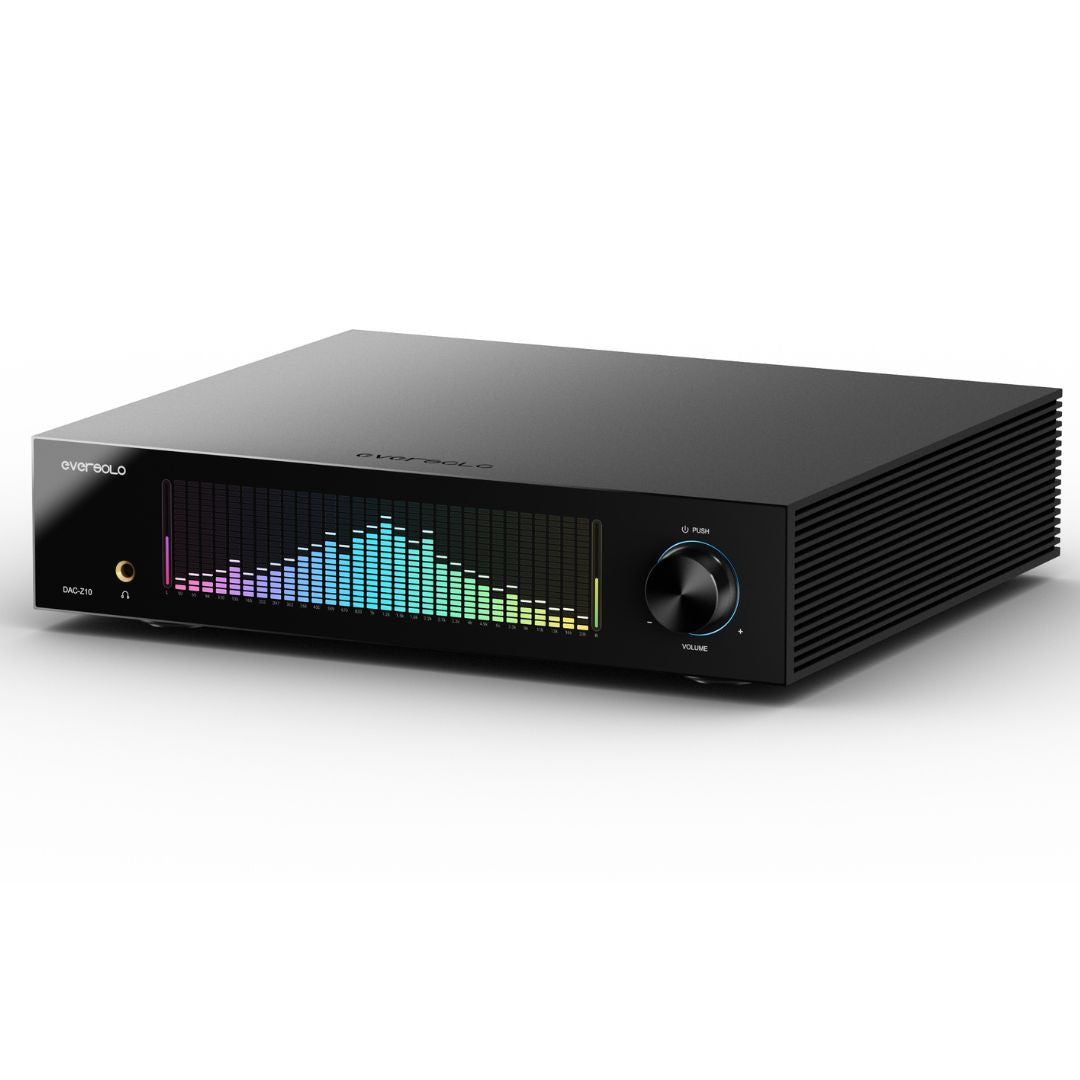

Enjoy vintage VU meters and dynamic spectrum displays, allowing you to enjoy the visual beauty of sound while listening to music. With the DAC-Z10, every performance comes alive.

Advanced Control Features

Additional Features

• Grounding post for noise elimination
• TRIGGER IN & OUT for linked control
• Routing information interface with intuitive signal path display
• Multiple exclusive volume knob colors
• Electromagnetic shielding

Technical Specifications

Experience Pure Sound

The Eversolo DAC-Z10 represents the pinnacle of digital-to-analog conversion technology, delivering authentic sound reproduction with uncompromising precision.
