THE MUSICAL EVIDENCE
With the A10 CLASSIC amplifier, the goal was to offer a modern integrated amplifier inspired by the famous X-i1100, hailed by audiophiles for its musicality and liveliness.
The A10 is fully future-proof and easy to use. Although its classic design remains timeless, it combines an ECC81/12AT7 tube preamplifier with a 2x130W class AB push-pull amplifier. In short, the best of both worlds!
Modernity is also on display, thanks to a microprocessor that manages all the functions called up by the encoder: a long or short press accesses the menus.
We can scroll through the inputs: 6 analog on RCA with an MM phono with three capacitance settings (100, 200, 320 pf), a balanced line on XLR, 5 digital including 3 optical, an S / PDIF and a USB audio, plus a connector for an aptX XFTB01 or XFTB02 bluetooth receiver (optional).
A USB-A socket accepts MP3 audio files from a portable music player or USB memory stick. Original: two HDMI sockets, one for a DVD to benefit from the A10's audio signal quality, and an HDMI ARC socket to connect a CEC protocol display, can be activated in the system configuration menu. Also shown here are system information, speaker selection (A, B or A+B), loudness, bass, treble or bypass settings, and auto sleep (or not) from 5 to 90 min.

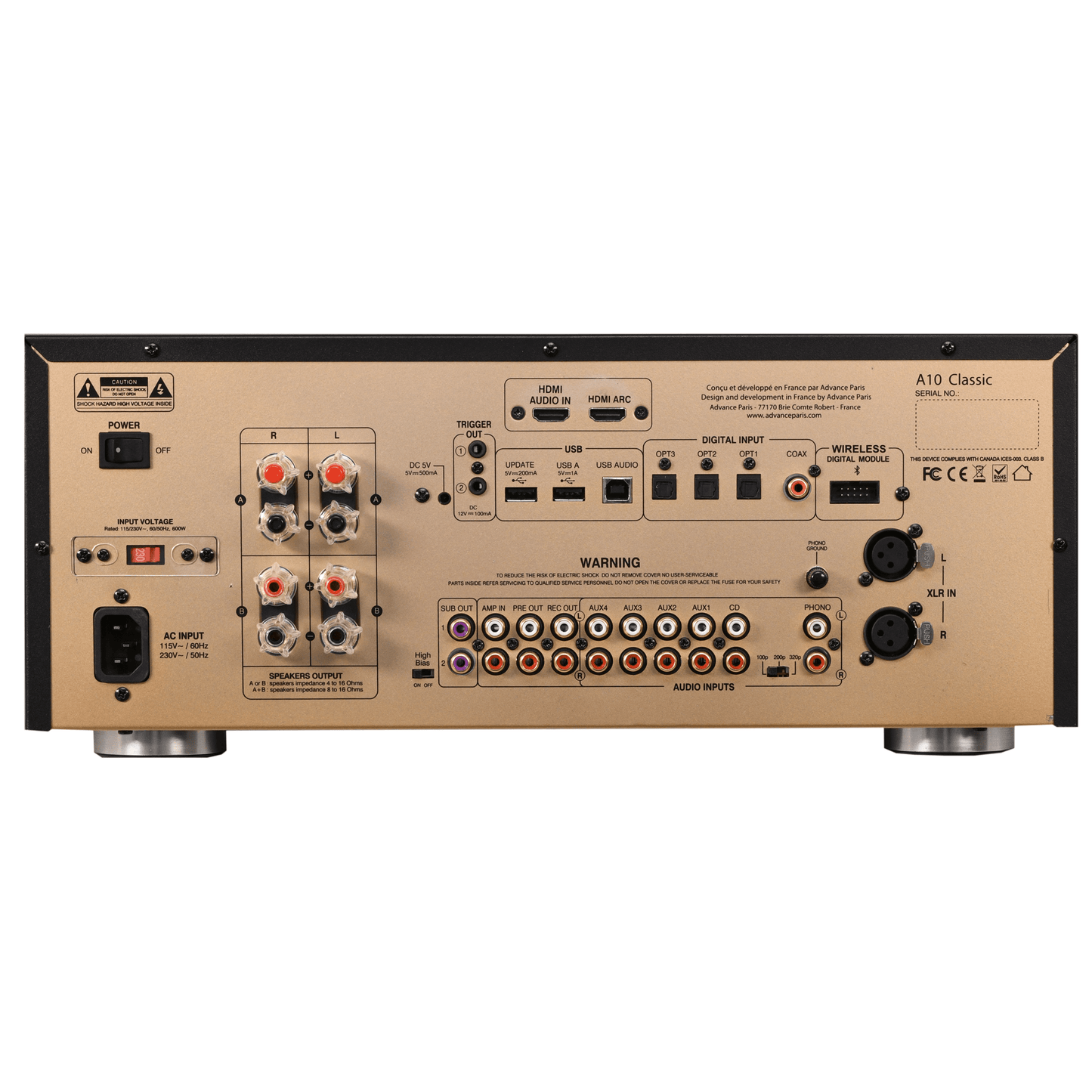

The trigger In/Out input switches the A10 on and off remotely, or from the A10 to another device connected via the minijacks.
The A10 offers the possibility of connecting two subwoofers. A Pre-Out output allows connection of an additional power amp. A fixed Rec Out output is intended for a cassette, MD or other type of recorder. At the rear, the High Bias switch activates Class A polarization on the first watts of the power stage.
The A10 is a real winner, and can even hold its own against much more ambitious and expensive models. A great success in prospect!
Usually ships the next business day!
Specifications
Output power 8Ω |
2 x 130W RMS |
Output power 4Ω |
2 x 190W RMS |
Bandwidth |
(-3dB) 10Hz-35kHz |
Tone |
+/- 10 dB |
Distortion |
<0.1% |
Signal to noise ratio |
> 90 dB |
Channel separation |
> 70 dB |
Impedance d'entrée |
47KΩ |
Phono input impedance |
47KΩ |
Lvl. amplifier input |
< 300mV |
Phono MM input level |
2,5mV |
Mains voltage |
115-230V |
consumption max. |
400 |
Transformer |
1 |
Width |
16.93 in. |
Height |
6.89 in. |
Depth |
15.16 in. |
Net weight |
31.97 lbs. |
Gross weight |
37.48 lbs. |
CD input |
1 |
Tuner input |
1 |
Auxiliary Input |
4 |
RCA Analog Input |
1 |
Record output |
1 |
Output for Subwoofer |
2, Mono, Low Pass 400 Hz |
Amp-Preamp |
Preamp Output |
Optical input |
1 |
USB-A input |
1 |
USB-B input |
1 |
Output Pair of speakers |
2 |
5 Volt Output WTX 500 |
1 |
Settings |
Treble, Balance, Bypass, Hi Bias Switch, Bass, Volume |
VU-Meter |
Yes |
Tubes |
Yes |
DAC |
SSE 9018 |
