Grado Red4 Phono Cartridge

Regular price $190.00 USD
Sale price $190.00 USD
Sale Sold out
Quantity

30-day return policy

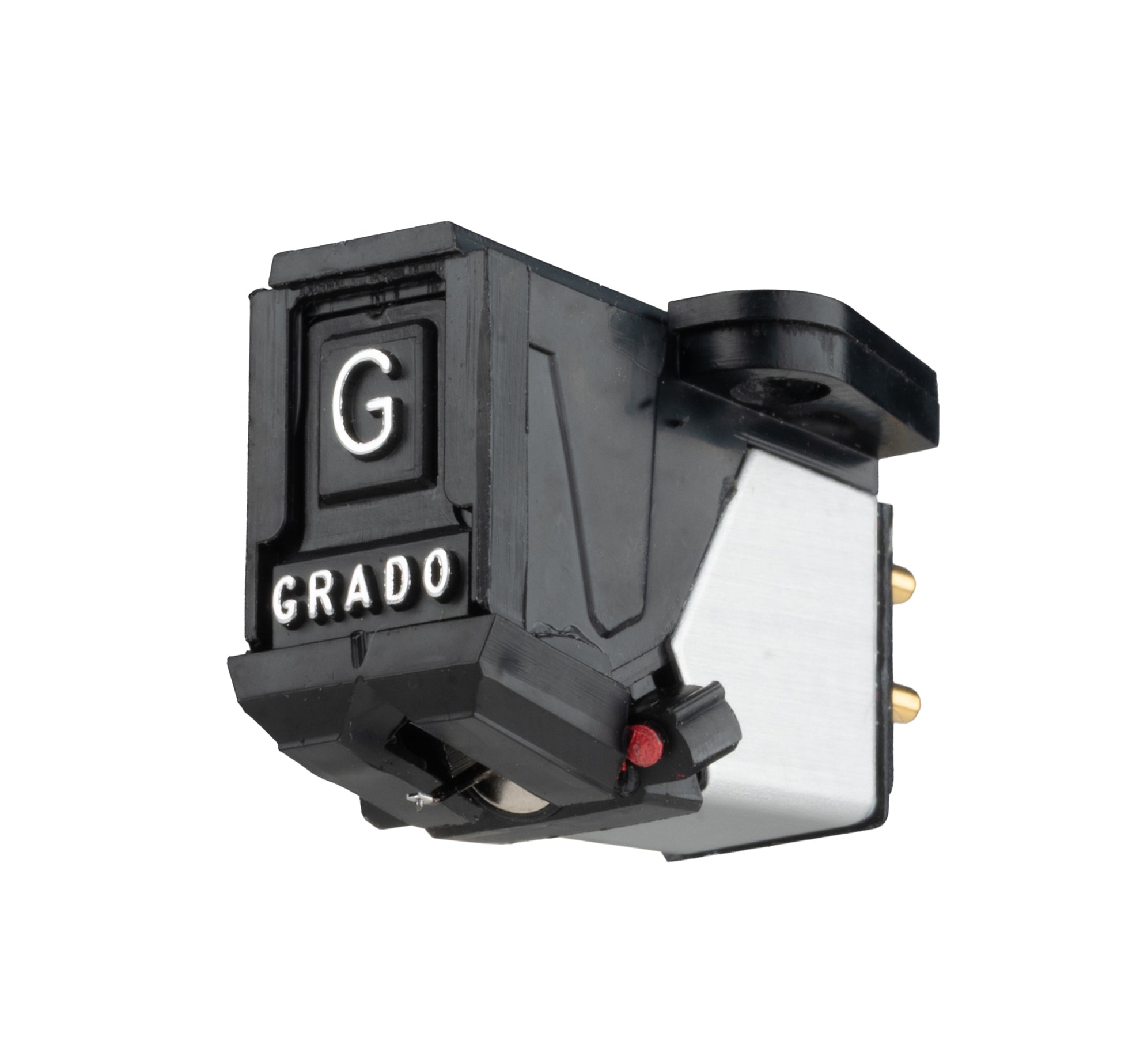

Grado Red4

Prestige Series · Moving Iron Phono Cartridge

Part of the Grado Prestige Series, the Red4 delivers a balanced and engaging presentation built on decades of cartridge design experience. It maintains the core performance principles that define Grado cartridges while offering broad system compatibility — controlled, coherent, and consistently musical.

Moving Iron Design

Built on Joseph Grado's patented flux-bridger principle — extremely low moving mass, fixed coil, and long-term signal consistency without the fragility of moving coil designs.

Bonded Elliptical Diamond

Elliptical profile on an aluminum cantilever for effective groove contact, reliable tracking, and a stable, controlled presentation across a wide range of recordings.

User-Replaceable Stylus

The stylus assembly is easily user-replaceable. All Prestige Series styli are interchangeable, offering long-term ownership flexibility across models.

5N OCC Copper & Cryo Treatment

Ultra-high purity 5N OCC copper internal signal path with cryogenic treatment and internal damping to reduce resonance and preserve signal integrity.

Technical Specifications

Output 4 mV @ 5 CMV (45°)
Frequency Response 10–55,000 Hz
Channel Separation Avg 25 dB, 10–30,000 Hz
Stylus Diamond Elliptical
Input Load 10k–47k ohms
Inductance 50 mH
DC Resistance 660 ohms
Cartridge Weight 6 grams
Tracking Force 1.6–1.9 grams
Compliance 20 µm/mN
Mounting P-Mount or ½" Screw Mount

Mounting Compatibility

Available in P-Mount and ½" Standard Screw Mount configurations for broad tonearm compatibility.
