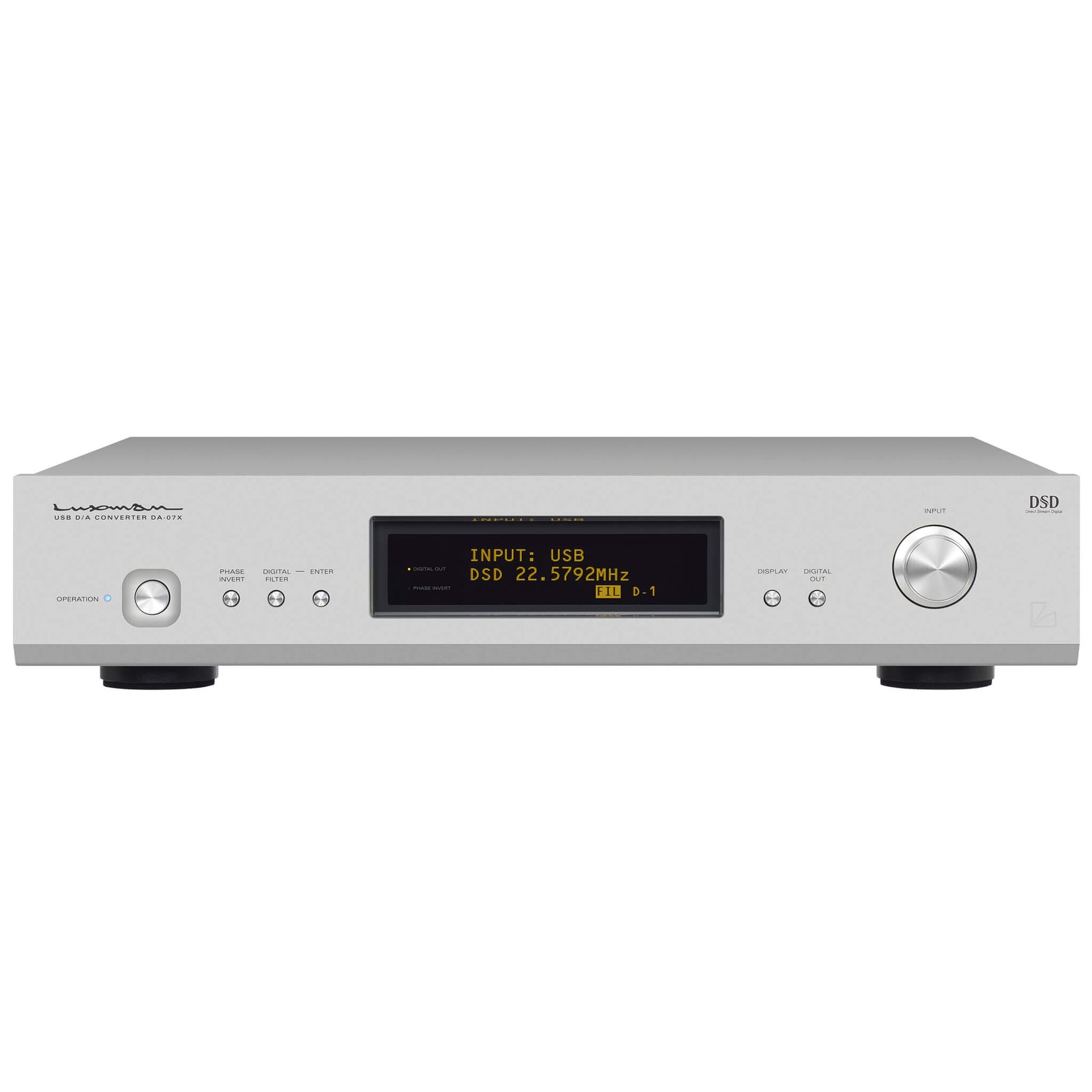

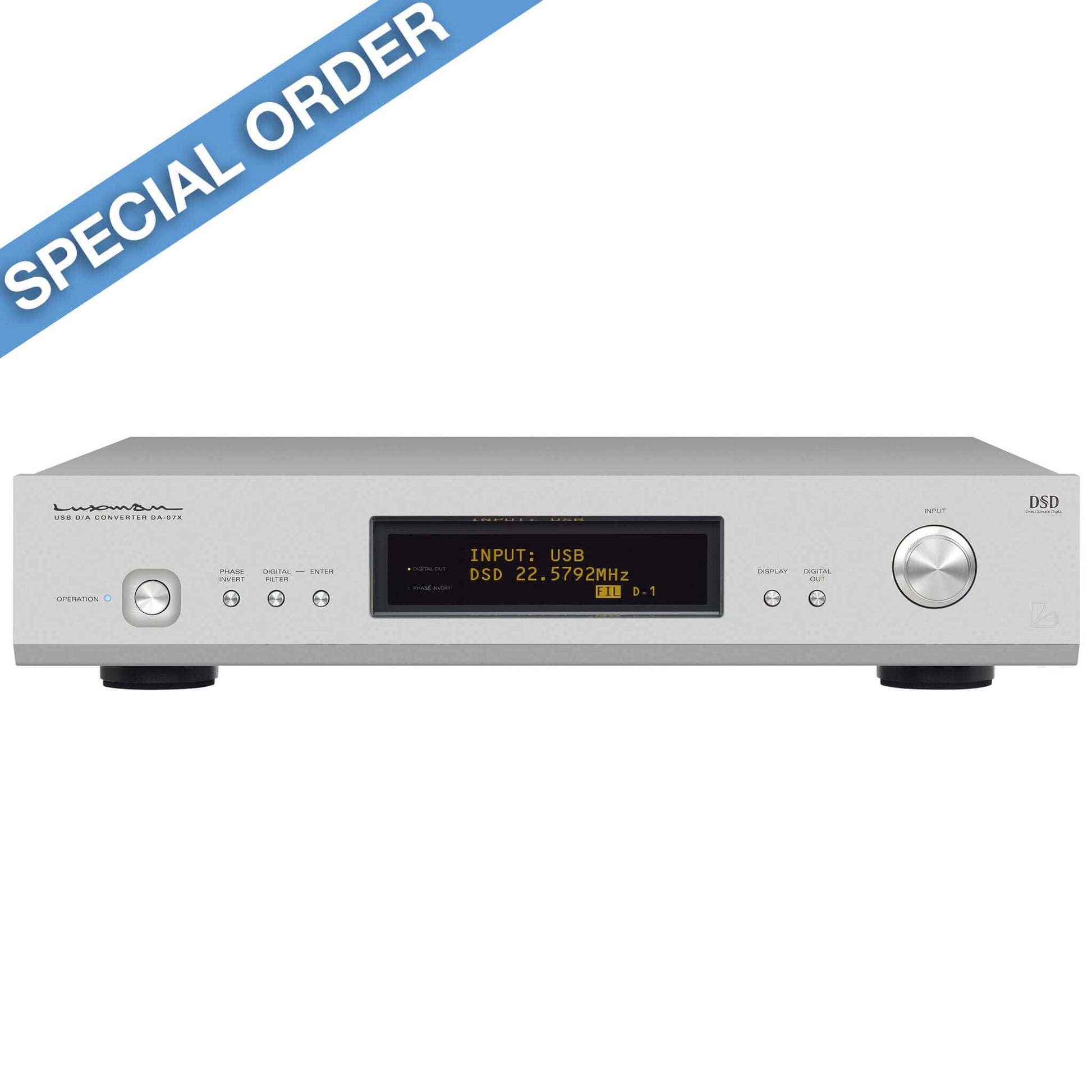

Luxman DA-07X Digital-to-Analog Converter
Experience audiophile-grade digital conversion with Luxman's flagship DAC. The DA-07X combines cutting-edge SABRE32 Ultra DAC technology with Luxman's legendary analog circuit design, delivering uncompromising sound quality for the most discerning listeners.
✨ Key Features
🎯 SABRE32 Ultra DAC Technology
Dual ESS ES9038PRO SABRE32 Ultra DAC chips in monaural configuration deliver exceptional dynamic range of 140dB and ultra-low distortion for pristine audio reproduction.
🔬 Advanced Digital Processing
Supports PCM up to 32-bit/768kHz and DSD up to 22.5MHz (DSD512) with sophisticated upsampling and digital filtering options for optimal sound tailoring.
🎭 Pure Analog Output Stage
Luxman's proprietary ODNF (Only Distortion Negative Feedback) analog circuitry ensures natural, musical sound reproduction with minimal coloration and maximum transparency.
⚡ Premium Power Supply

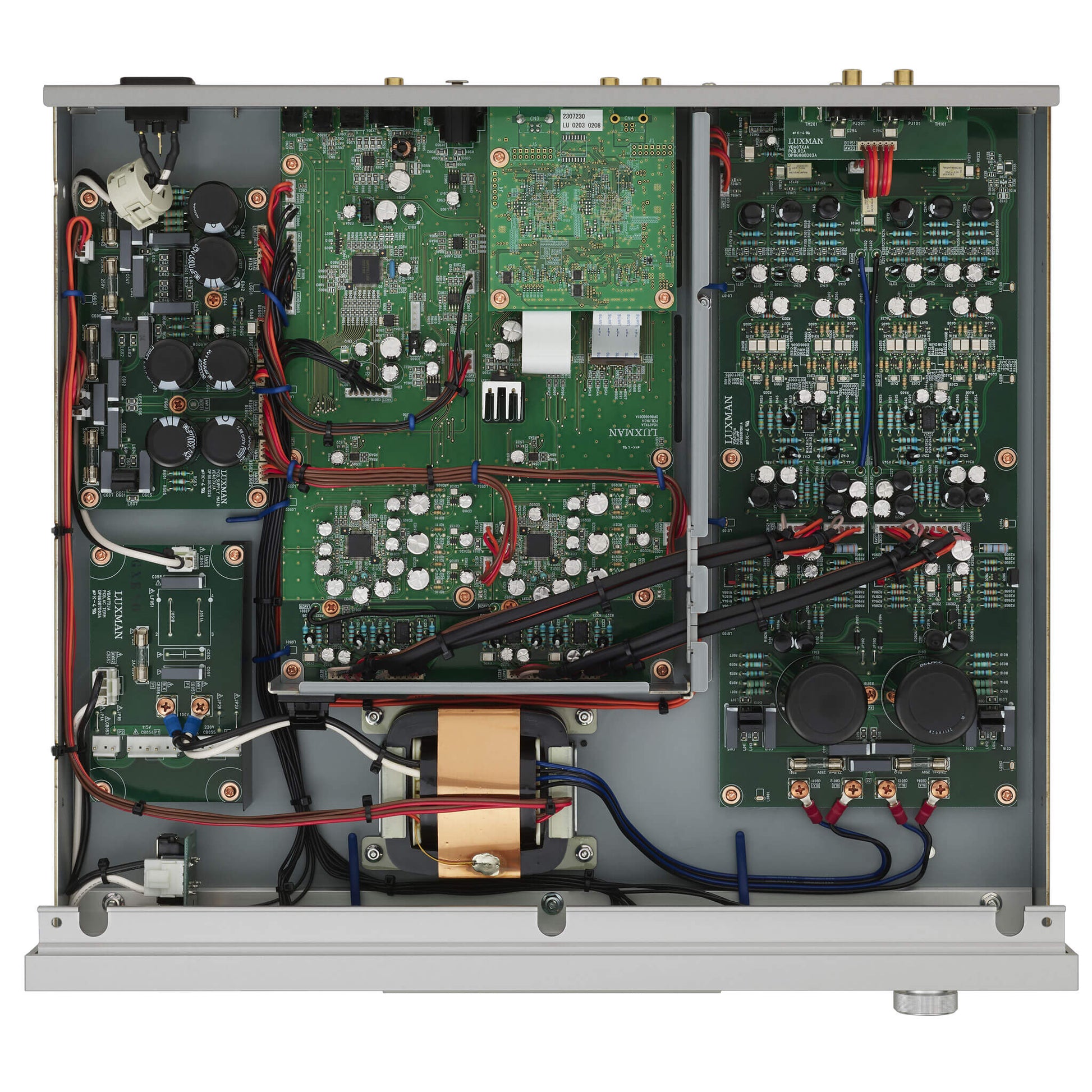

Separate toroidal transformers for digital and analog sections with extensive power supply regulation eliminate interference and ensure stable, clean power delivery.
📐 Technical Specifications
Dual ESS ES9038PRO
SABRE32 Ultra
Up to 32-bit/768kHz
Up to DSD512 (22.5MHz)
140dB (A-weighted)
0.0003% (1kHz)

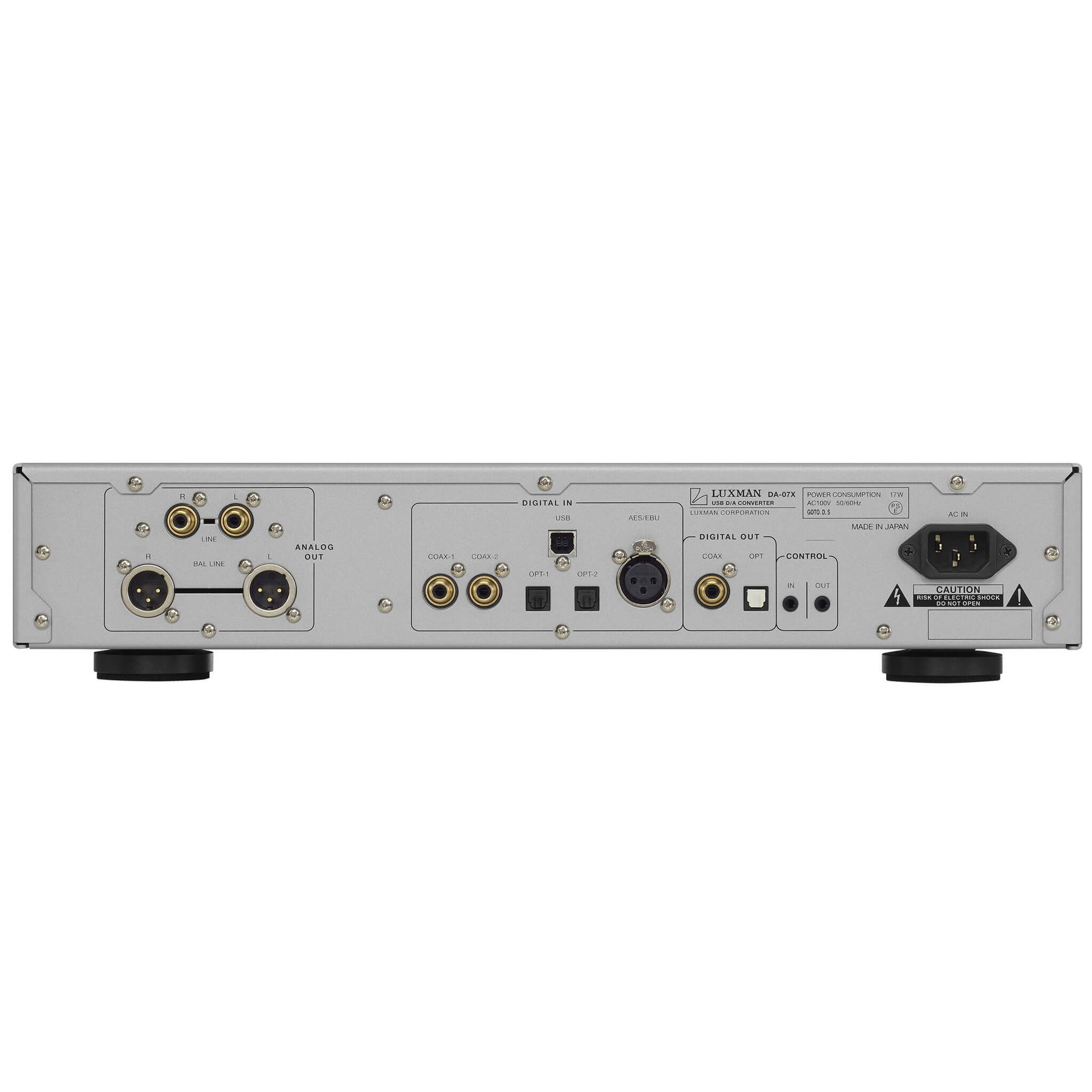

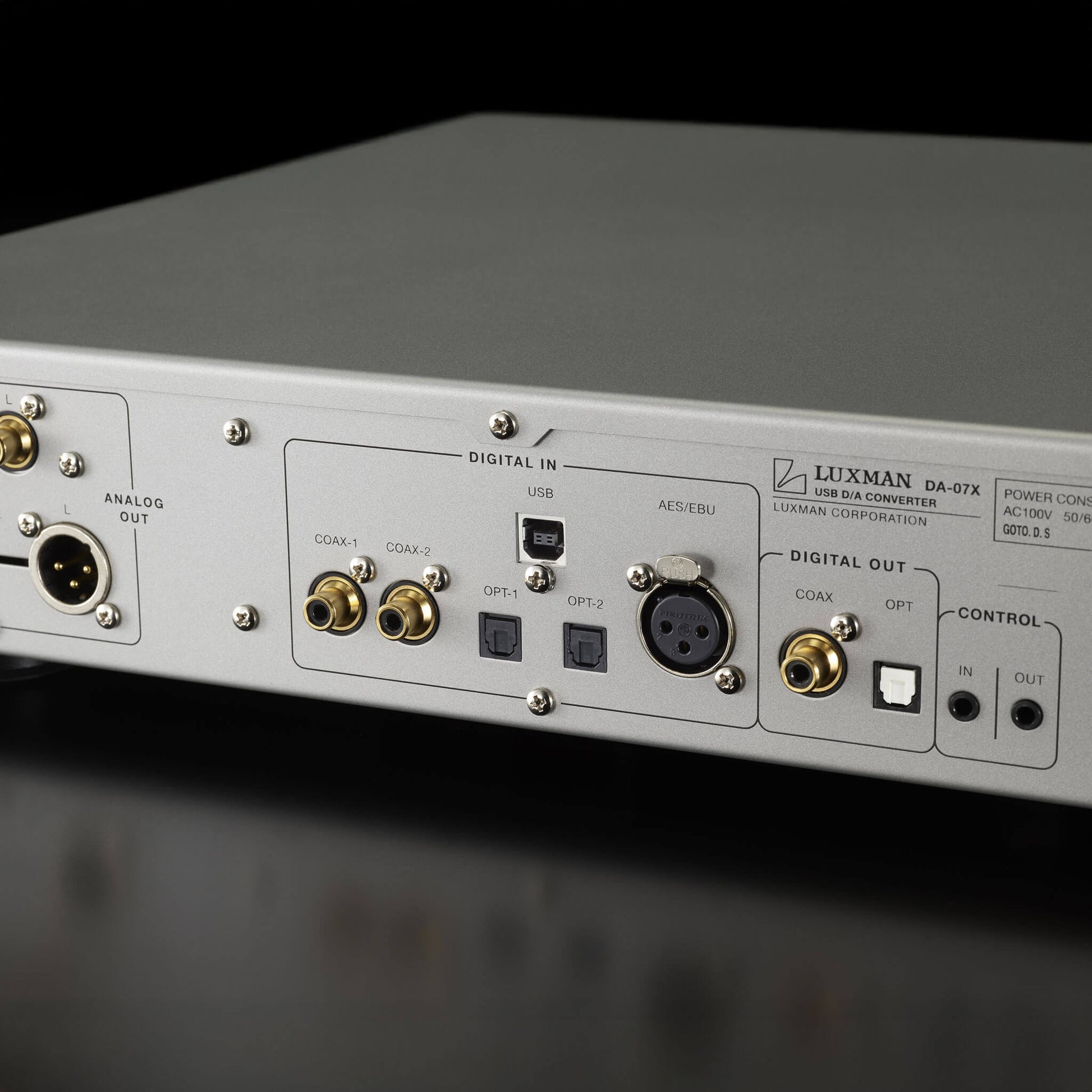

USB-B, Coaxial (2), Optical (2)
XLR Balanced, RCA Unbalanced
440 × 139 × 387mm
14.5kg (32 lbs)
AC 120V, 60Hz, 35W
🎵 Digital Filter Options
• Linear Phase Fast Roll-off
• Linear Phase Slow Roll-off
• Minimum Phase Fast Roll-off
• Minimum Phase Slow Roll-off
• 50kHz Low-pass
• 100kHz Low-pass
• 150kHz Low-pass
• Direct (No Filter)
🎧 Perfect for: High-end audio systems • Reference monitoring • Critical listening • Audiophile music reproduction
🏆 Experience the pinnacle of digital-to-analog conversion with Luxman's flagship DA-07X
