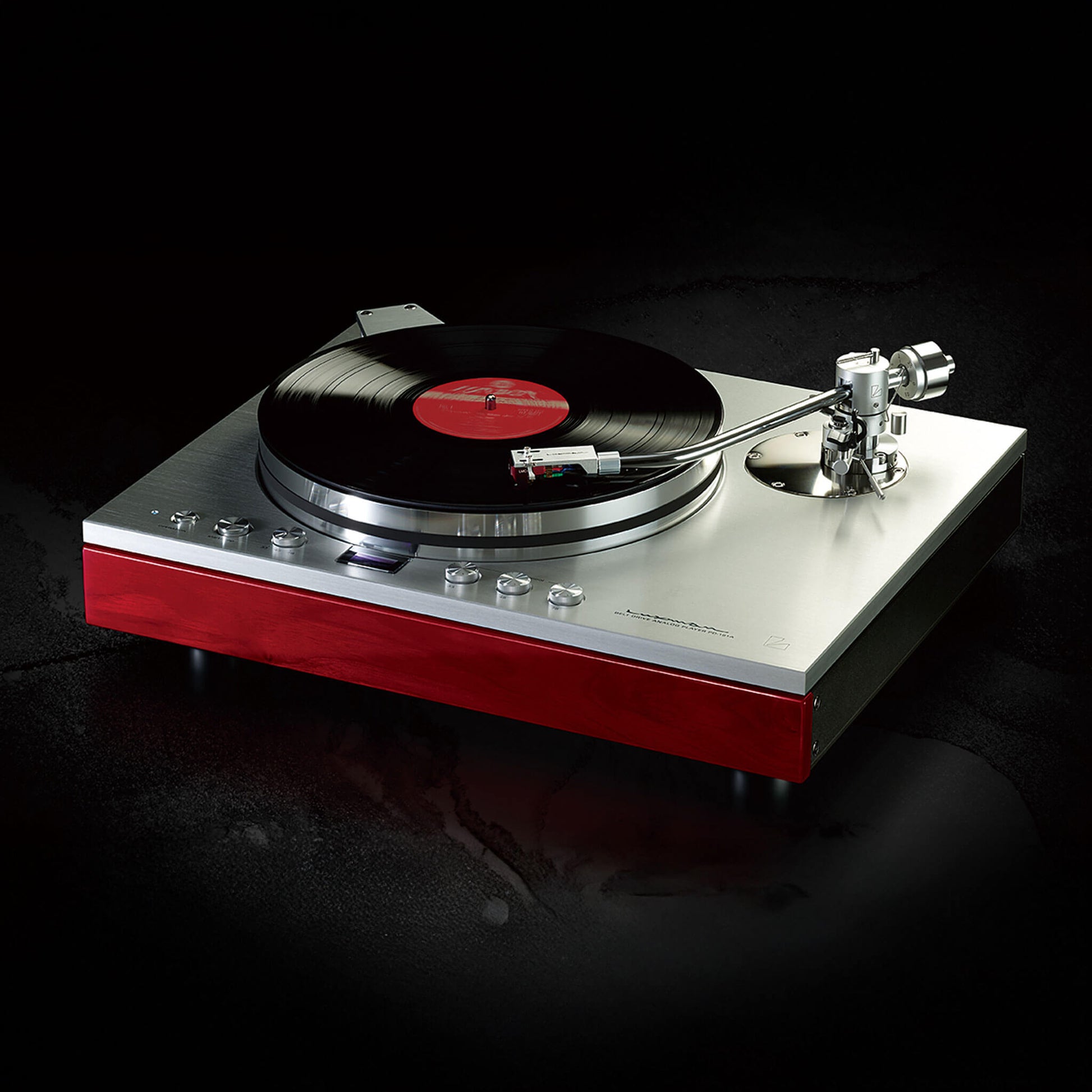

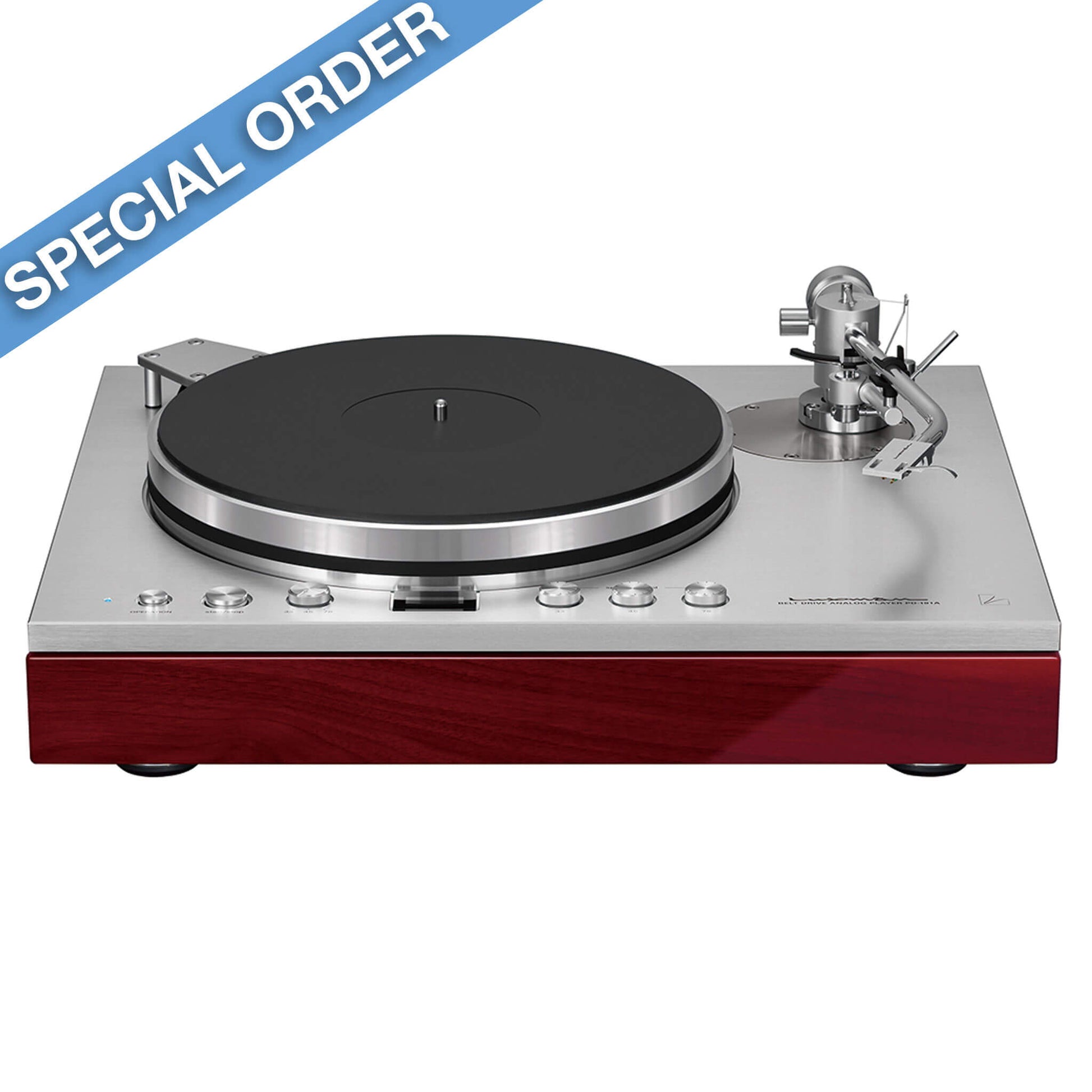

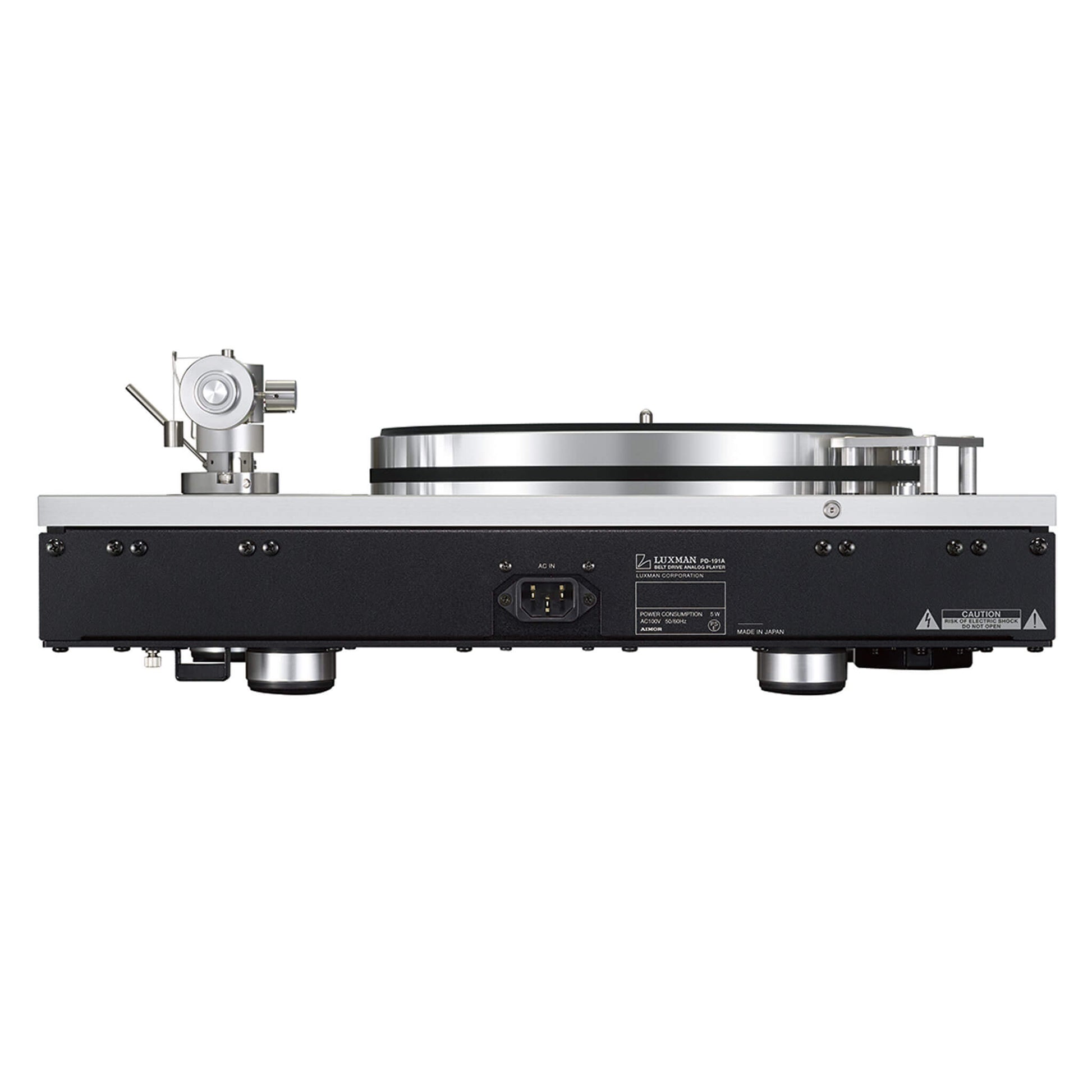

Luxman PD-191A Turntable
Luxman PD-191A Turntable
Couldn't load pickup availability
Luxman PD-191A Turntable
Savor the endlessly rich warmth of analog music with this premium turntable system designed to replace the legendary PD-171 series. The PD-191A delivers the excellence of vinyl recordings through our newly developed original tonearm with extremely high initial sensitivity, combined with a silent and refined DC motor belt-drive system for a truly high-fidelity and emotional vinyl listening experience.
✨ Key Features
🎯 LTA-710 Original Tonearm Development
Specially developed for the PD-191A is our LTA-710 static balanced tonearm which employs knife-edge bearing technology for excellent initial movement sensitivity. A joint development with the audio brand SAEC, who have been designing tonearms for more than 40 years, the LTA-710 brings many highly regarded technologies to the LUXMAN turntable family.
This fully-fledged original arm design required two and half years to develop. By setting the effective arm length to 10 inches, tracking errors are further suppressed and resistance to vinyl surface vibration effects is enhanced, ensuring even the gentlest musical signals are reproduced faithfully.
⚡ Brushless DC Motor & Advanced Control
The drive motor features an original, high-precision, high-torque brushless DC motor supported by a float-mounted, highly stable and fully regulated large-capacity power transformer upgraded for today's high-mass platters. Our sine wave PWM/PID rotation speed control programming achieves constant and accurate rotation control under various demands.
A high-performance reference clock for speed correction uses a MEMS oscillator with excellent temperature characteristics, ensuring precise speeds and quiet platter drive. The PID system integrates Proportional, Integral, and Differential operations for optimal speed stability.
💎 Heavyweight High-Mass Platter System
The platter is a 35mm-thick, 5.2kg heavyweight disk machined from a single, extremely thick aluminum billet, precisely diamond cut and finished to exact surfaces. Acting as a flywheel with a huge moment of inertia of 0.7t·cm², it delivers smooth and confident rotation with exceptional stability.
The spindle features high-rigidity specifications with a high-tensile strength stainless steel shaft (16mm diameter) and customized bearing system combining PEEK thrust bearing with matched brass radial bearing filled with organic molybdenum oil for stable lubrication under high loads.
🎨 Elegant Timeless Design
The PD-191A features a rosewood-stained solid natural wood front panel with beautiful glossy finish, contrasting with the finely hairline-treated aluminum top panel. By offsetting the motor mounting inside the lower chassis, we achieved a stylish, low center of gravity form with total height 12mm lower than the PD-171A.
Operational systems including power supply, turntable start/stop, rotation speed switching and adjustment are focused on the top panel for utilitarian and functional beauty. An optional 4mm thick acrylic dust cover with cam/spring hinges is available separately.
🔧 Multiple Vibration Damping Structures
The underslung suspension structure attaches main components to a 15mm thick aluminum plate, achieving both high rigidity and damping performance. The motor drive system and power transformer mount on an extra thick bottom plate, insulated with damping rubber for protection from external vibrations.
This comprehensive approach greatly improves the mechanical S/N ratio (rumble) and feedback resistance, ensuring delicate signal pickup remains uncontaminated by mechanical interference for pristine sound reproduction.
📊 Three-Speed Operation with Precision Control
The PD-191A supports 3 rotation speeds: 33⅓, 45, and 78 RPM. A reflected LED stroboscope with enhanced visibility pattern allows precise speed monitoring. Dedicated control for each individual rotation speed enables more reliable and precise rotation speed adjustments with ±6% range for each speed.
The stroboscope system, well-received from the PD-171 series, has been refined with improved reflecting strip patterns for better visibility under various lighting conditions, making speed verification effortless and accurate.
📐 Technical Specifications
Belt drive system
Brushless DC motor with PID control
Machined aluminum, Diamond cut
Weight: 5.2kg
Moment of inertia: 0.7t·cm²
33⅓rpm, 45rpm, 78rpm
Speed adjustment: ±6% each speed
Wow & flutter: 0.04% or less (W.R.M.S.)
Static balanced, S-shaped
Effective length: 256mm
Overhang: 16mm
Tracking error: +1.07° to -1.52°
Weight: 4-11g (cartridge only)
Total: 17-24g (including headshell)
Height adjustment: 22mm
Anti-skating: 0-4g
Power: 230V~/115V~ 50/60Hz
Consumption: 5W

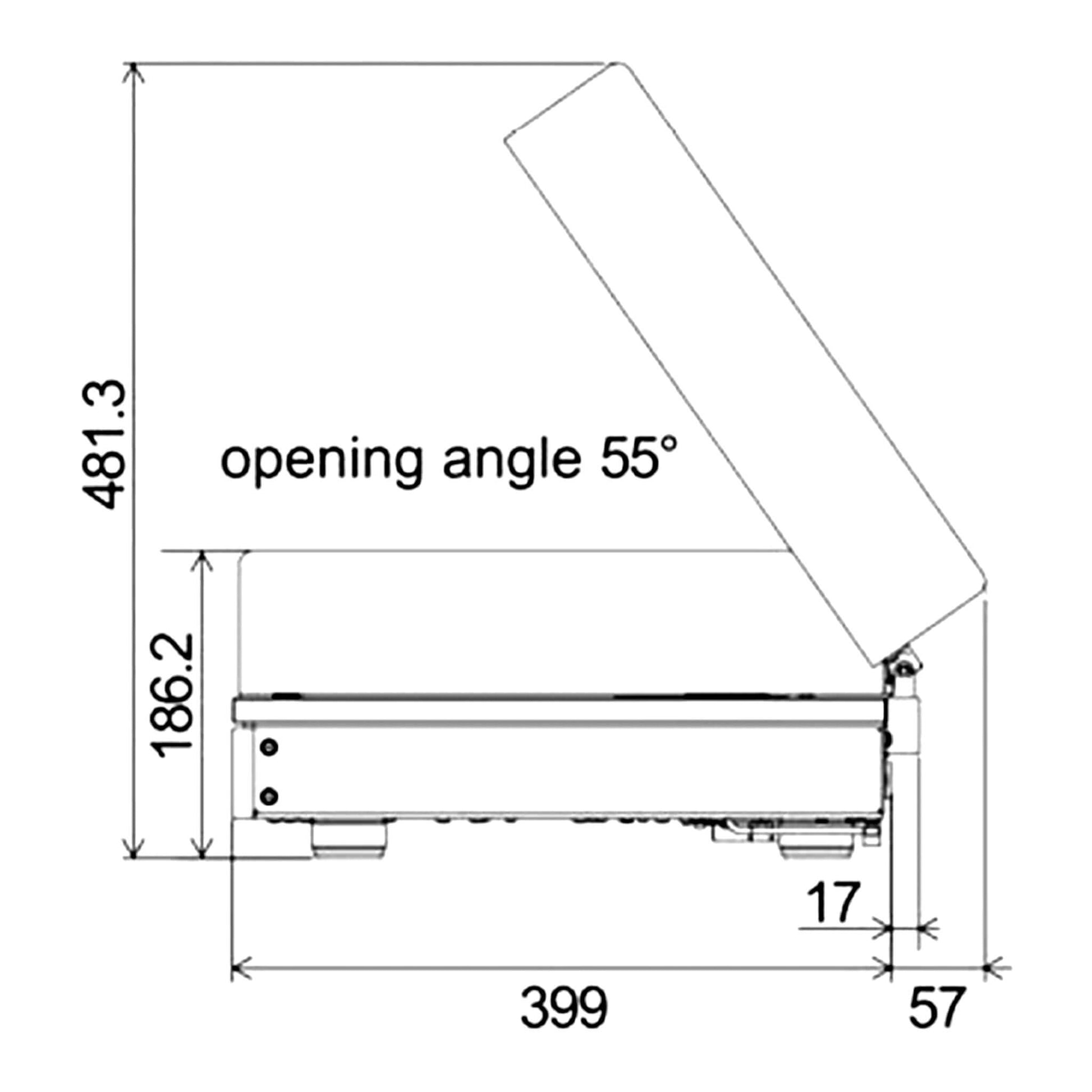

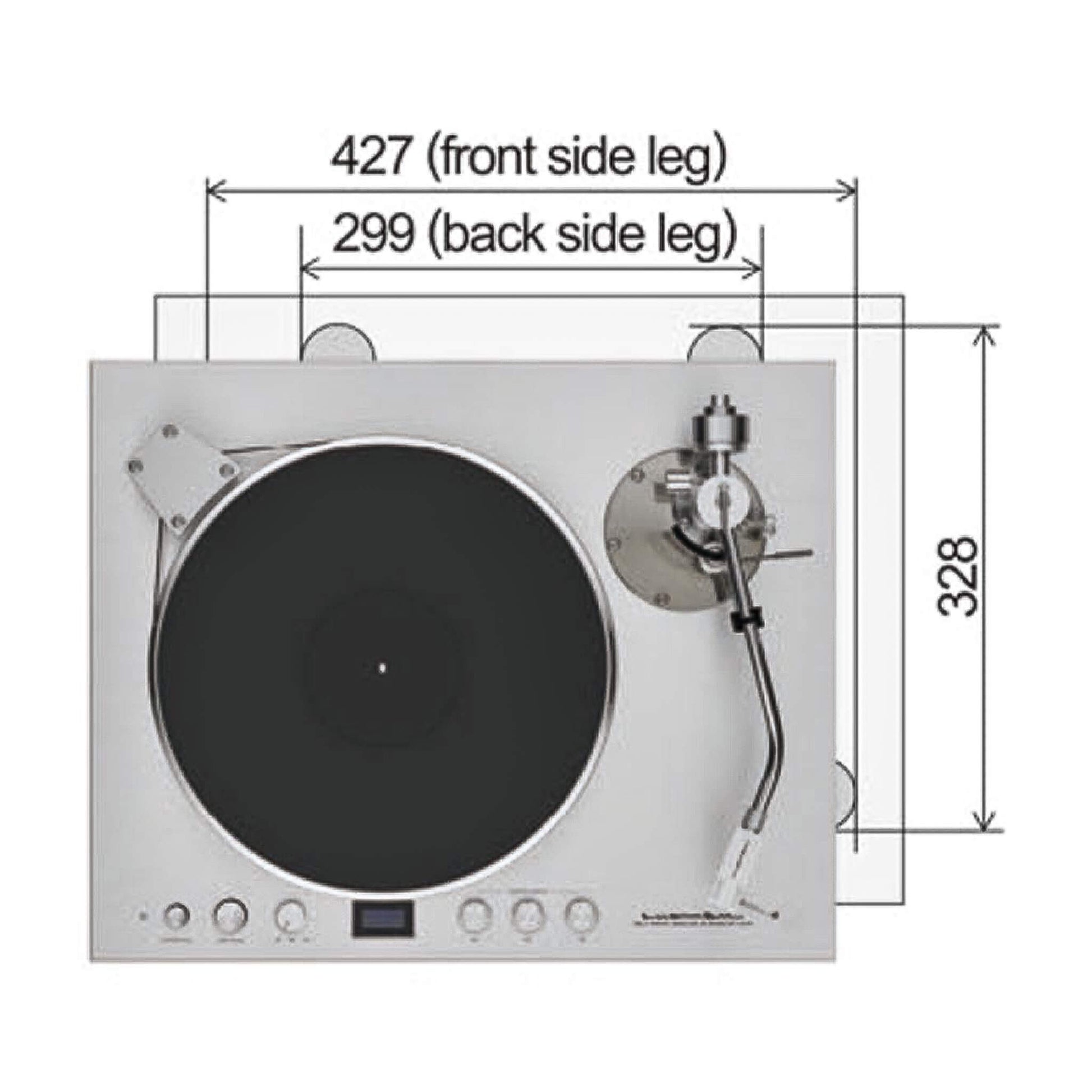

Dimensions: 491×128×399mm
Weight: 24.8kg (26.4kg with cover)
🎵 Perfect for: Audiophile vinyl systems • High-end turntable setups • Professional audio applications • Multi-tonearm configurations • Precision analog playback
