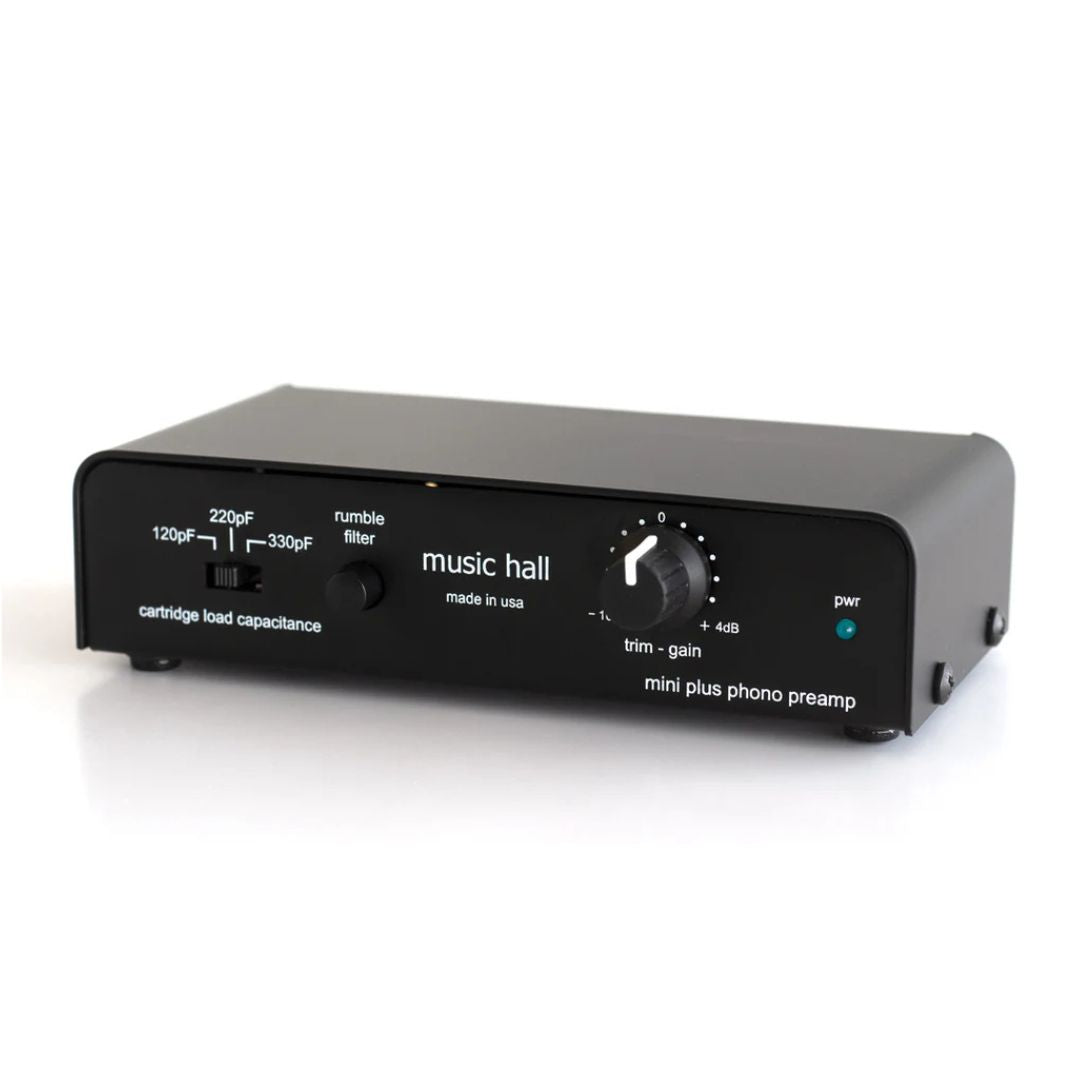

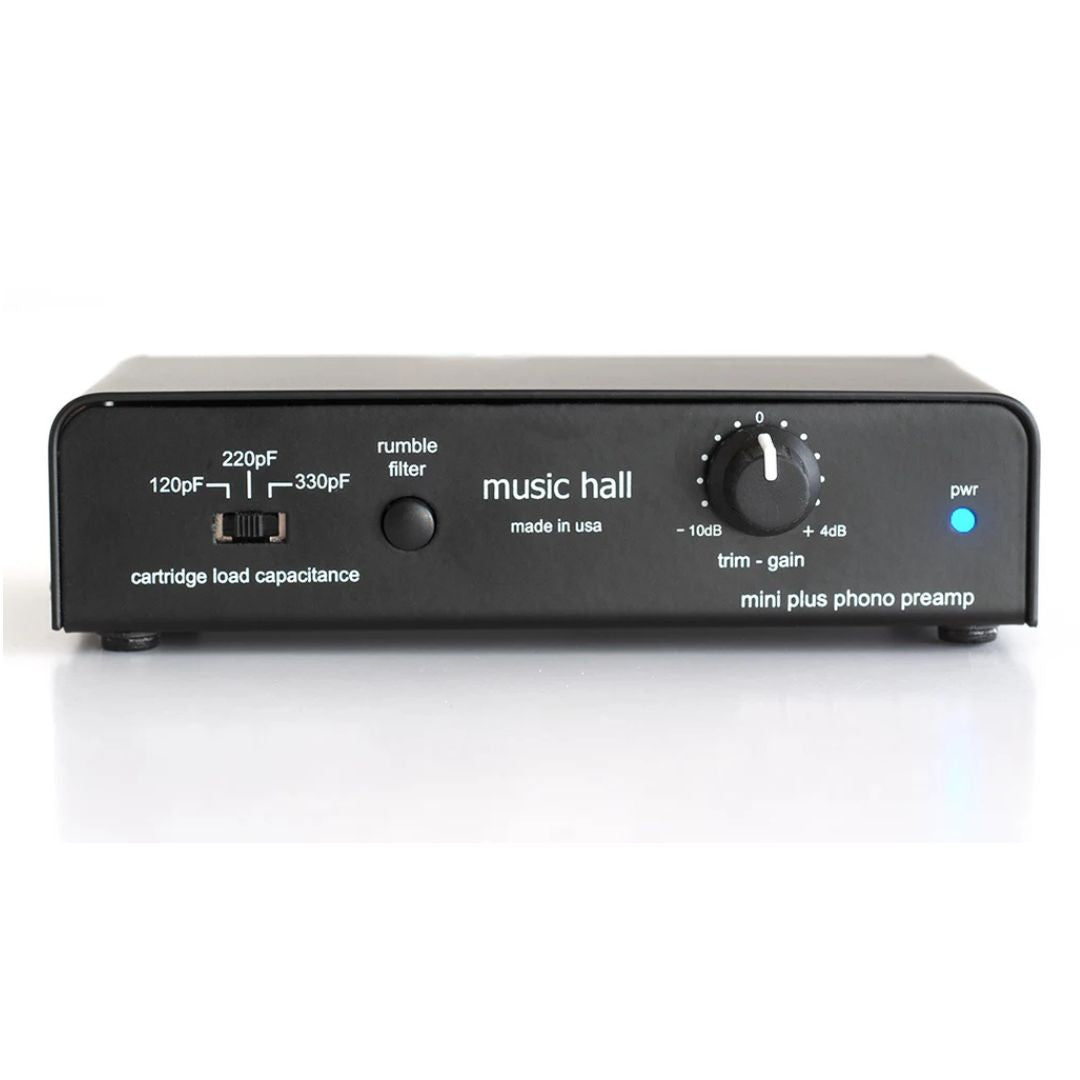

Music Hall Mini Plus Phono Preamplifier
Product Highlights:
Low-noise, high-quality phono preamp.
Designed for MM and high-output MC cartridges.
Adjustable cartridge load capacitance for fine-tuning.
Trim-gain control for ideal match in volume.
Ultra-quiet MM phono amp and headphone amp.
Gold-plated RCA inputs and outputs.
Energy-efficient external switch mode power supply.
Rigid chassis construction and vibration-damping feet.
The Music Hall Mini Plus Phono Preamp is a powerful solution that's perfect for connecting your turntable to your modern audio equipment. With a low-noise, high-quality phono preamp, it's designed to work with moving-magnet and high-output moving-coil cartridges.
What makes the Mini Plus stand out are its unique and serious sound features. After hundreds of hours of listening and development, we added an adjustable cartridge load capacitance, allowing you to fine-tune the preamp to match the characteristics of your chosen MM cartridge. Additionally, the trim-gain control lets you boost or reduce the output of the preamp, ensuring an ideal match in volume between your cartridge, the record, and your system.
The Mini Plus also features an ultra-quiet MM phono amp, high-grade headphone amp, gold-plated RCA inputs and outputs, energy-efficient external switch mode power supply, worldwide compatibility, rigid chassis construction, and vibration-damping feet, making it the ultimate phono preamp for your turntable.
Specs

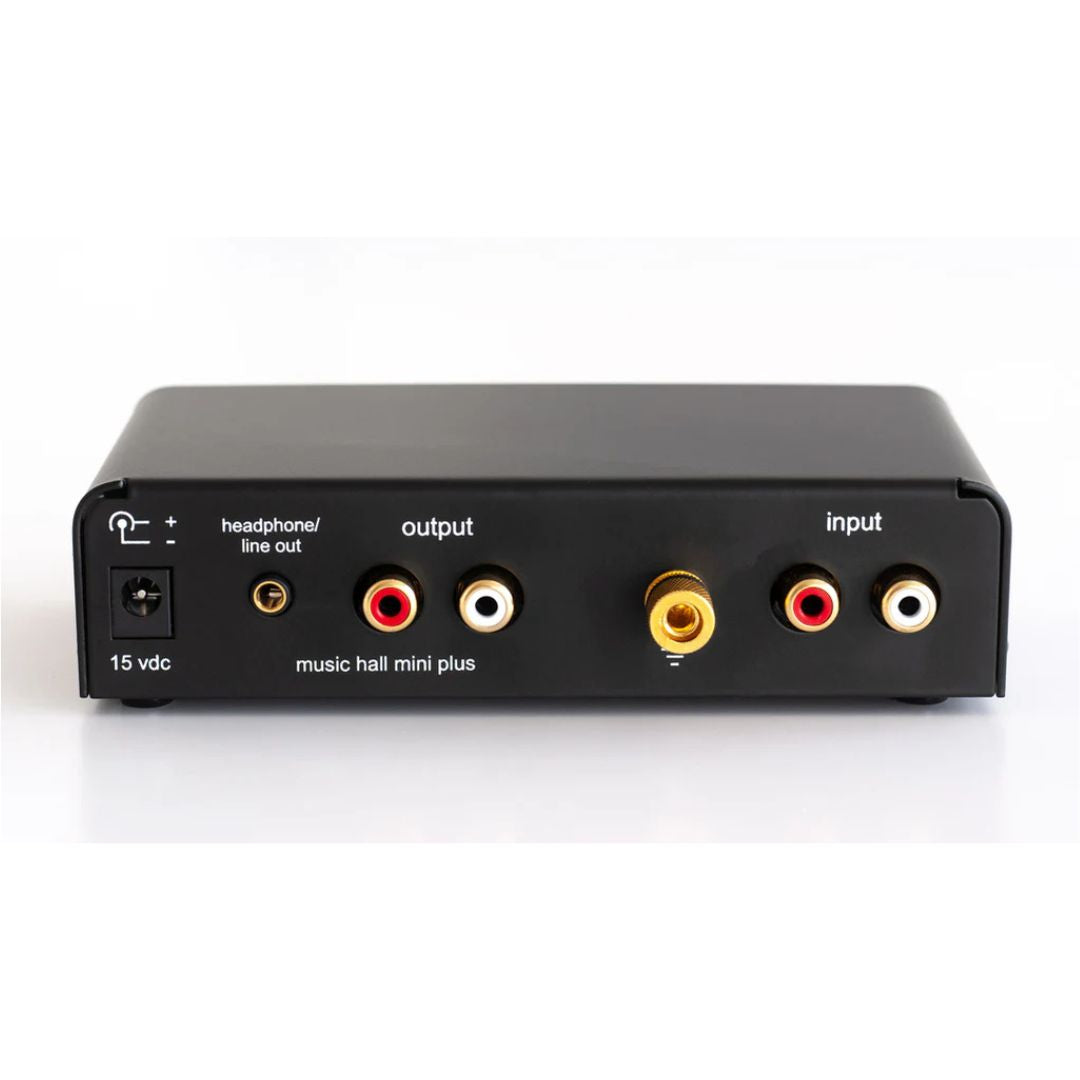

Input & Output Connectors: RCA, 1/8” TRS stereo
Gain: 41.51 dB gain @ 1kHz at “0” setting, 31.64 dB gain @ “-10” setting, 45.66 dB gain @ “+4” setting
Input Impedance: 47k Ohms
Output Impedance: 32 Ohms headphone, 470 Ohms RCA
Frequency Response: 3 Hz to 36 kHz
Equalization: RIAA +/- 1 dB, 14 Hz to 23 kHz
Rumble Filter: 20Hz
THD: .005% @ 1kHz
Power: 15V DC
Dimensions (WxDxH): 5.5” x 3.5” x 1.25”
Weight: 2 lbs.
