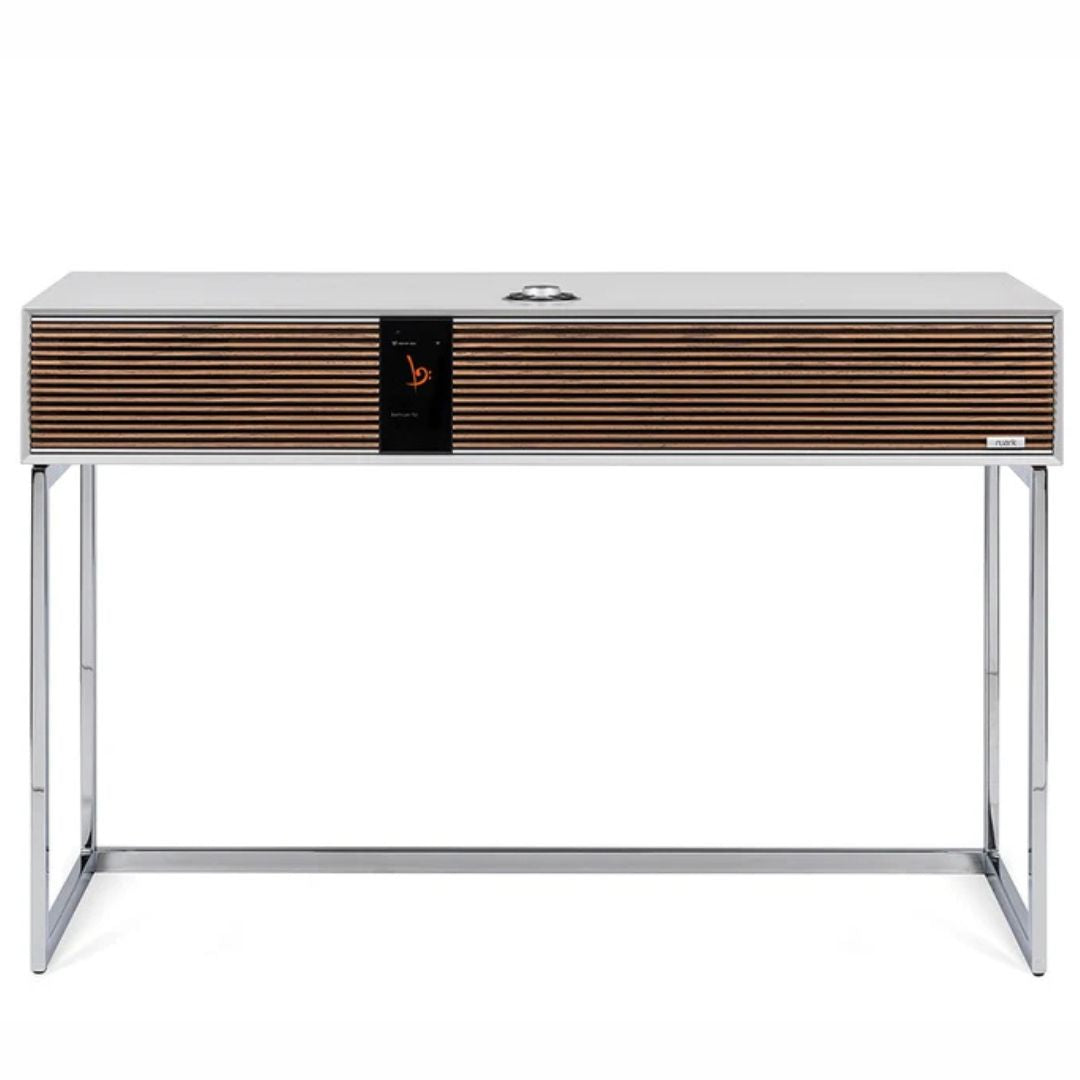

Ruark R810 Integrated Music System
Ruark R810 Integrated Music System
Couldn't load pickup availability
An Object to Desire
Like the iconic radiograms of yesteryear, R810 is a product that has been designed to be seen. Enhancing R810's aesthetics is the special material we've selected for the handcrafted grille and veneered cabinets. Made from sustainable woods that are spliced and reconstituted, the resulting grain patterns closely resemble slow-growing hardwoods but without the ecological impact. Combined with the precision formed trims and polished chrome stand, R810 radiates sophistication and like the finest furniture, it is an object that you will cherish and be proud to have on display in your home.
A Beautiful Display
The hi-resolution display provides all the information you need right in front of you and brings the look of R810 to life. With its portrait orientation the display intentionally emulates the way we view music applications on our phones and in conjunction with our new RotoDial controller makes R810 second nature to use.
Tactile Controls
You still can't beat the positive click of a button or satisfying turn of a dial, particularly when it comes packaged as something unique and beautiful like our RotoDial control system. Included with R810 is a matching rechargeable remote with Bluetooth connectivity—no aiming required.
What Lies Beneath
Inside, the enclosure has been carefully divided into compartments, each optimised for their intended task. Twin bass reflex compartments house our NS+ bass-midrange units and silk dome tweeters, while the long throw subwoofer is housed beneath in an infinite baffle enclosure for superbly controlled and extended bass.
Connection Bliss
R810 is a fully integrated entertainment system providing all the connectivity you'll ever need. Spotify Connect, TIDAL Connect and Qobuz Connect are built-in, plus Apple AirPlay and Google Cast. Connect turntables via dedicated phono inputs or the R-CD100 CD player via USB-C.
Technical Specifications
Audio Performance
Frequency Response: 30Hz - 22kHz
Amplifier: Fully active Class AB (180W Total)
DAC: Burr-Brown 32-bit 192kHz
Speaker Units
• 2× Ruark 28mm silk dome tweeters
• 2× Ruark 100mm NS+ woofers
• 1× Ruark 200mm long-throw subwoofer
Connectivity
Wireless: Wi-Fi 802.11ax, Bluetooth 5.1 (aptX HD)
Streaming: Spotify, TIDAL, Qobuz Connect
Inputs: HDMI ARC/eARC, Optical, Line In, Phono, USB-C
Radio & Features
Radio: Internet Radio, DAB/DAB+, FM with RDS
Display: 4" high-contrast colour TFT
Presets: 20 global presets
Dimensions & Weight
Cabinet: H150 × W1000 × D400mm
With Stand: H660 × W1000 × D435mm
Weight: 27kg
Supported Formats
MP3, AAC, FLAC, AIFF, ALAC, WAV
Up to 32-bit 192kHz
Apple AirPlay 2, Google Cast
What's in the Box
R810 Music System • 2m AC Power Cable • Quick Start Guide
Telescopic Aerial & Spanner • Rechargeable Wireless Remote
Polished Chrome Frame Stand • Polished Chrome Bar Legs
Available Finishes

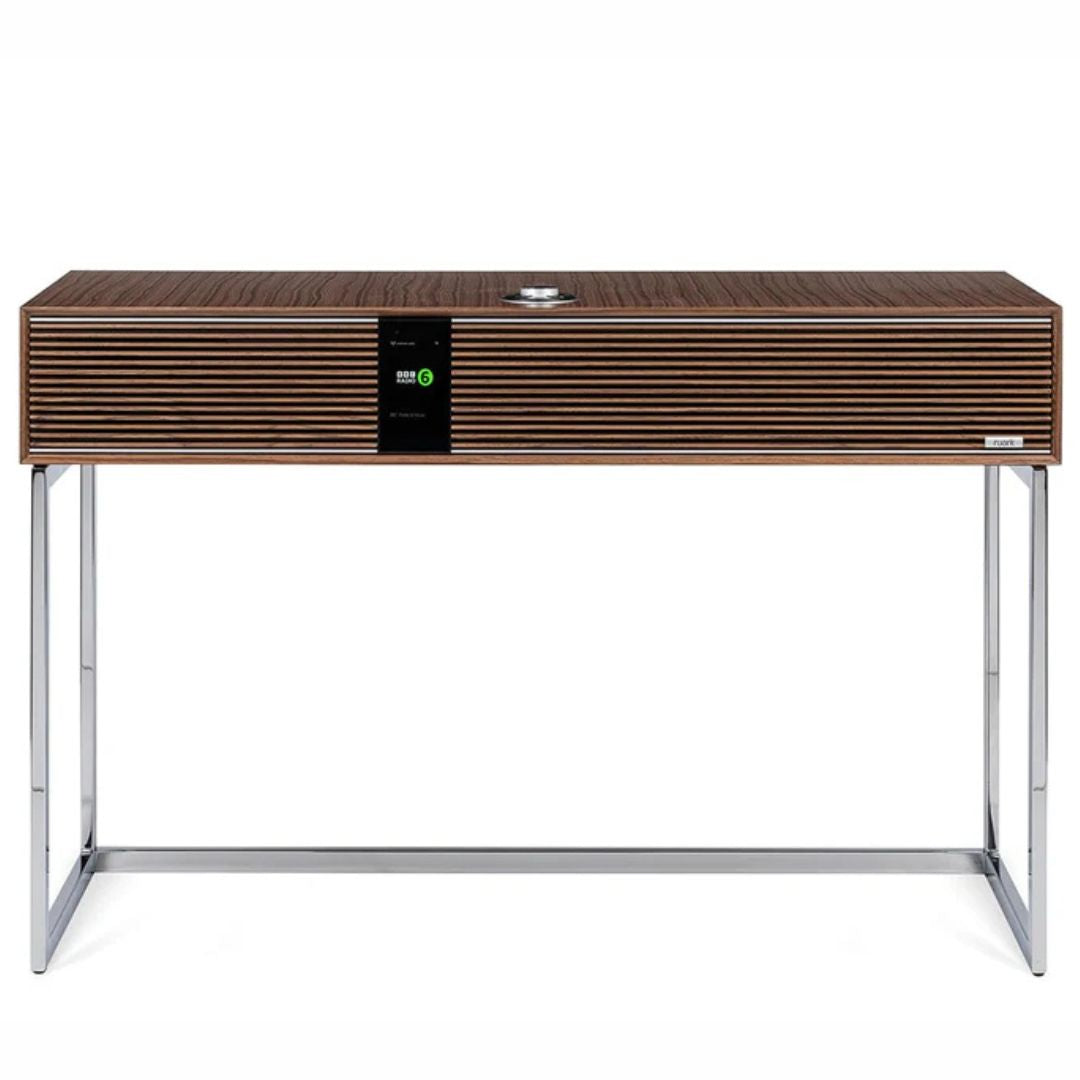

• Fused Walnut cabinet with Fused Walnut grille
• Soft Grey Lacquer cabinet with Fused Walnut grille
