TEAC TN-400BTX Manual Belt-Drive Bluetooth Turntable

TEAC TN-400BTX Manual Belt-Drive Bluetooth Turntable

Regular price $549.00 USD
Regular price Sale price $549.00 USD
Sale Sold out

Analog turntable with Bluetooth® Qualcomm® aptX™ transmitter that streams music from LP Records wirelessly

ENJOY YOUR VINYL AND CUT THE CORD

The TN-400BT-X is an analog turntable that also enables to playback LP records wirelessly via Bluetooth® headphones & speakers. A die-cast aluminium platter provides accurate rotational speed while an S-shaped static-balanced aluminum tone-arm provides accurate tracking. The built-in Phono EQ amplifier enables the TN-400BT-X to be connected to a conventional hi-fi audio system not having phono input.

A built-in Bluetooth® transmitter codec supports Qualcomm® aptX™ Adaptive. It enables to playback LP records with high-quality audio and low-latency via Bluetooth® headphones or Bluetooth® speakers supporting the Qualcomm® aptX™ Adaptive.

For convenience, a quality Japanese-made moving magnet-type cartridge comes pre-installed, so users can quickly start enjoying their records without a lengthy set-up procedure.

Aluminum die-cast platter with 3-speed belt-drive

A die-cast, high-inertia aluminum platter is driven by a high-torque DC motor via a durable rubber flat-belt, giving immensely stable playback at 33-⅓, 45 and 78 rpm speeds.

TN-400BT-X
New low-resistance spindle

A precisely-machined stainless steel spindle and durable brass bearing maintain accurate rotational speed, thanks to reduced friction.

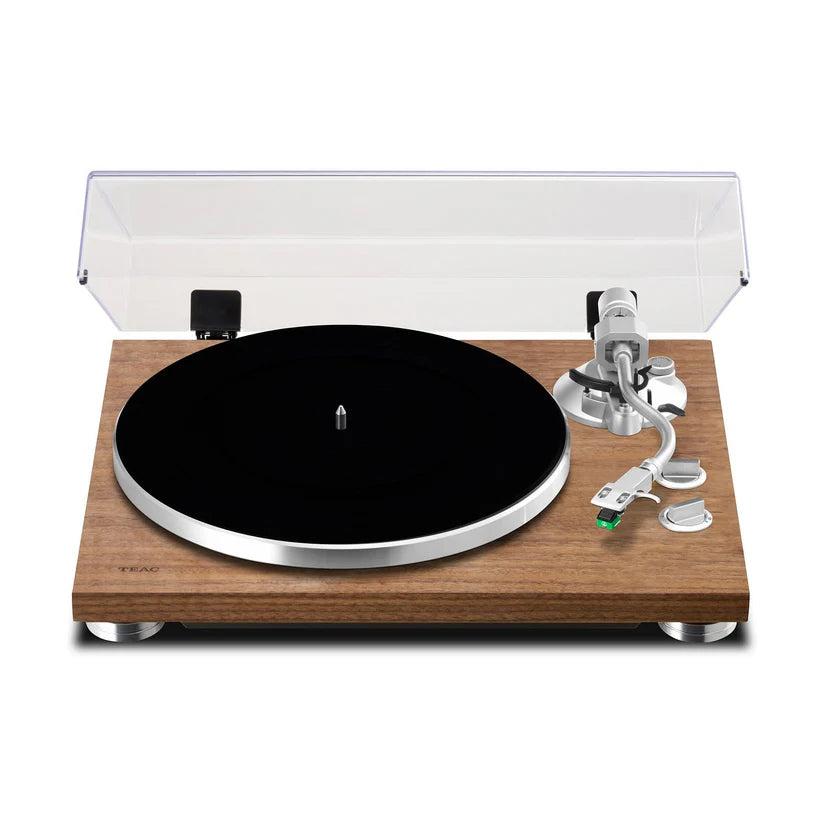

Natural walnut veneer finish with laser-engraved logo

The TN-400BT-X is available in natural varnished walnut veneer finish with laser-engraved TEAC logo.

TN-400BT-X
Built-in Phono EQ amplifier

The TN-400BT-X has an onboard Phono EQ amplifier that supports MM-type cartridges, allowing the deck to be connected to conventional amplifiers/micro systems that lack a dedicated turntable input. The Phono EQ amplifier employs a hi-fi quality NJM8080 op-amp chip (designed by JRC) which amplifies the tiny audio signal from the stylus with the minimum of distortion.

S-shaped static-balanced tone-arm

The S-shaped, static-balanced aluminum tone-arm is equipped with a counterweight and anti-skating mechanism that allow an exact setting of balance as well as tracking pressure, ensuring accurate tracking during playback. A tone-arm lifter is also fitted for smooth lowering of the tone-arm onto records.
The tone-arm takes universal-type headshells so users can change cartridges with relative ease. In order to reduce signal losses between the tone-arm and the headshell, gold-plated contact points are employed, to help deliver an uncorrupted audio signal.

TN-400BT-X
Bluetooth® wireless audio streaming with Qualcomm® aptX™ Adaptive codec

The TN-400BT-X's Bluetooth® wireless transmission system supports the higher quality Qualcomm® aptX™ Adaptive codecs, as well as the conventional SBC codec. This means that even if users don't have a hi-fi system, then can still enjoy truly high-quality vinyl replay via Bluetooth®-equipped headphones or speakers. Connecting the TN-400BT-X to Bluetooth® headphones or speakers is achieved very simply, at the touch of a button. A single-function pairing key and an associated LED indicator provide simple and clear confirmation of the connection status.

TN-400BT-X
Beautifully detailed

The TN-400BT-X brings elegance to the process of playing a record. The machined aluminum operation knobs ooze quality while the aluminum feet, attached to high-density MDF chassis via shock-absorbing rubber, provide a high resistance to feedback.

MM-type Cartridge from audio-technica

The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.

TN-400BT-X
MM-type Cartridge from audio-technica

The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.

TN-400BT-X

Features at a glance

  • Robust high-density MDF plinth provides both vibration isolation and elegance
  • Available in a selection of contemporary matt finishes, or a natural walnut veneer
  • 3-speed belt-drive mechanism with aluminum die-cast platter (33-⅓, 45, 78 rpm)
  • Low-resistance spindle for stable rotational speed
  • Static-balanced S-shaped tone-arm with universal-type headshell
  • Pre-installed MM-type AT95E cartridge from audio-technica
  • Built-in Phono EQ Amplifier
  • High-quality Bluetooth® Qualcomm® aptX™ and Qualcomm® aptX™ Adaptive wireless audio transmission
  • Floating-construction using decoupled feet provides high feedback resistance
  • Machined aluminum operation knobs and feet
  • Gold-plated RCA jacks (for LINE/PHONO output) and tone-arm contacts
  • GND terminal on rear panel
  • RCA audio cable with GND wiring included
      *This product does not have a USB digital output.

Spec description

Turntable section
Type Belt Drive
Motor DC Motor
Rotation Speeds 33-⅓, 45, 78 rpm
Wow-and-Flutters 0.2%
S/N Ratio more than 67dB (A-weighted)
60dB (unweighted, 20kHz, LPF)
Turntable (Platter)
Material Aluminum Die-cast
Diameter 30cm
Tone-arm section
Type S-shaped, Static-balanced
Effective Length 223mm
Needle Pressure Range 0g to 5g
Compatible Cartridge Weight 4g to 8g
14g to 18g (including Head-shell)
Head-shell and Cartridge sections
Model of Cartridge audio-technica AT95E
Type of Cartridge MM-type (VM-type)
Frequency Response 20Hz to 20,000Hz
Output Voltage 3.5mV (1kHz, 5cm/sec.)
Channel Separation 20dB (1kHz)
Output Balance 2.0 dB (1kHz)
Needle Pressure 1.5g to 2.5g (appropriate value: 2.0g)
Needle Life approx. 300 hours (depends on conditions)
Coil Impedance 2.8kohms (1kHz)
DC Resistance 410ohms
Loading Resistance 47kohms
Loading Capacity 100 to 200pF
Coil Inductance 400mH (1kHz)
Static Compliance 20 × 10-6cm/dyne
Dynamic Compliance 6.5 × 10-6cm/dyne (100Hz)
Needle Shape Joint-oval 0.3 × 0.7mil
Cantilever Aluminum Pipe
Vertical Tracking Degree 20 degrees
Overall Dimensions 17.0(W) × 17.2(H) × 30.5(D) mm
Weight 5.7 g
Head-shell Weight 10g (including nuts, screws, and wires)
Analog Output section
Connectors RCA jack × 1 pair (Gold-plated)
Output Voltage
PHONO 3.5mV +/-3dB
LINE 155mV (-16dBV)
Bluetooth® section
Bluetooth version 5.2 (DUAL MODE)
Profile A2DP
Codecs SBC, Qualcomm® aptX™ audio, Qualcomm® aptX™ Adaptive
Operation Power
AC Adapter Input AC 100 - 240V, 50/60Hz
AC Adapter Output DC 12V 500mA
Power Consumption 1.5W or less
Standby Power 0.5W or less
Dimensions (including protrusions) 420(W) × 117(H) × 356(D) mm /
16.5"(W) × 4.6"(H) × 14.0"(D)
Weight 4.9kg / 10.8lbs
Operating temperature range 5°C to 35°C
Included Accessories Felt Mat, EP Adapter, Counter Weight, Headshell (audio-technica AT95E installed), Platter, Dust Cover, Dust Cover Hinges × 2, RCA Audio Cable with GND wiring, AC Adapter (GPE053A-V120050-Z), Owner's Manual (including Warranty Card)

Additional information available at https://teac.jp/int/product/tn-5bb/top
